A water heater expansion tank is a small pressurized tank installed on the cold-water side of a water heater. Its job is simple: when water heats up, it expands. If that expanded water cannot move backward into the public water main, pressure rises inside your home’s plumbing. The expansion tank gives that extra volume somewhere safe to go.
The short answer for most homeowners is this: you usually need an expansion tank if your home has a closed plumbing system. A closed system can be created by a pressure-reducing valve, check valve, backflow preventer, some modern water meters, or a utility-required backflow device. In many jurisdictions, thermal expansion control is required when a water heater is installed or replaced.
On our job sites, we do not treat expansion tanks as optional accessories. We check whether the house has a closed system, measure the actual static water pressure, size the tank for the water heater and pressure conditions, and set the tank pre-charge before installation. Those details matter. A tank that is undersized, unsupported, or left at the factory air charge can still leave the plumbing exposed to pressure spikes.
What a Water Heater Expansion Tank Actually Does

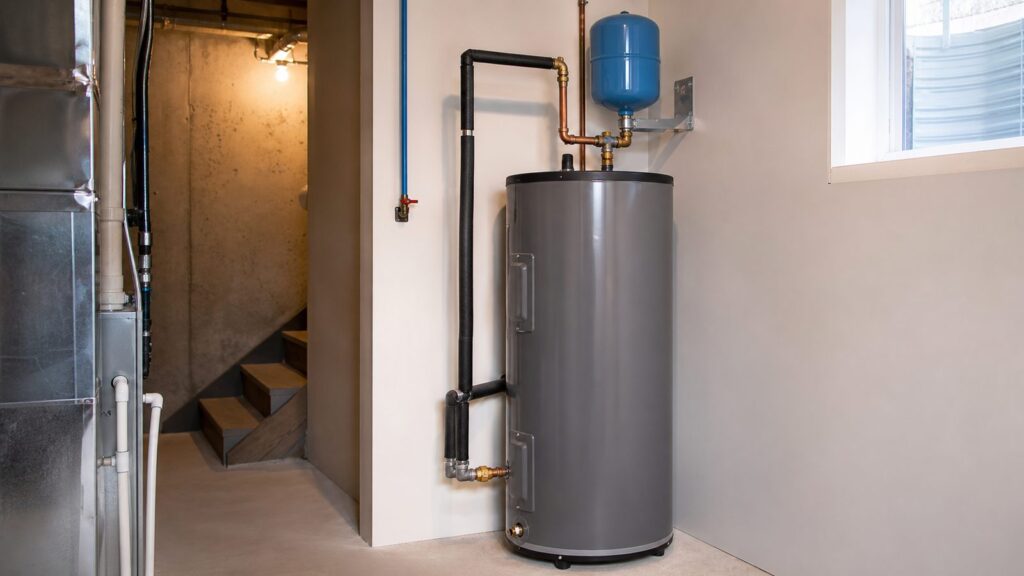

A typical residential expansion tank looks like a small steel cylinder, often about the size of a basketball or small propane tank. Many common residential models are 2 gallons, although larger homes or higher-pressure systems may need 4.5-, 5-, 10-gallon, or larger tanks. The tank connects to the cold-water supply line near the water heater.
#1 Best Overall
- Reliable Pressure Protection: Safeguards your water heater and plumbing system by absorbing excess thermal pressure, preventing damage
- Safe for Drinking Water: Certified for potable water use, ensuring clean and safe water for your household
- Easy 3/4" MNPT Connection: Features a standard 3/4-inch MNPT connection for quick and hassle-free installation
- Compact 2.1-Gallon Design: 2.1-gallon capacity provides optimal pressure relief while fitting seamlessly into tight spaces
- Built for Long-Term Use: Constructed with high-quality materials to deliver reliable performance and peace of mind
Inside the tank is an air chamber separated from potable water by a bladder or diaphragm. Air compresses; water does not compress in any practical sense. When heated water expands, a small amount of water enters the expansion tank and compresses the air cushion. That absorbs the pressure increase before it beats up the rest of the plumbing system.
Without that cushion, expansion pressure can show up as a dripping temperature and pressure relief valve, shortened water heater life, fixture leaks, nuisance water hammer symptoms, damaged toilet fill valves, leaking supply stops, or premature wear on appliances connected to the plumbing system.
The expansion tank is not a storage tank for hot water. It does not make the water heater more efficient, increase hot-water capacity, or fix a failing heater. It is a pressure-control device for the domestic water system.
Why Heated Water Becomes a Problem in a Closed System
Water expands when heated. In an open plumbing system, that extra volume can push backward into the municipal water main. In a closed plumbing system, it cannot. The result is a pressure rise inside the house.
Do these 3 things before closing this tab:
1Clear out junk files and repair common Windows errors2Fix the driver behind crashes, sound loss and screen glitches3Repair Windows errors before they cause bigger problemsMany homeowners do not know their home is closed because the device that creates the closed condition is often nowhere near the water heater. It may be near the main shutoff, at the meter box, at an irrigation backflow assembly, or built into utility equipment. Common causes include:
- A pressure-reducing valve, usually a bell-shaped valve near the main water shutoff
- A check valve on the water service
- A backflow preventer
- A dual-check device installed by the utility
- A water meter assembly with an internal check
A pressure-reducing valve deserves special attention. A PRV is installed to reduce high incoming municipal pressure to a safer house pressure. But because it allows flow in one direction, it often prevents expanded water from pushing back toward the main. That is why homes with PRVs commonly need expansion tanks.
A normal residential water pressure reading is often in the 40 to 60 psi range. Many plumbing components and water heater manufacturers treat 80 psi as an upper limit for residential systems. If your static pressure is over 80 psi, an expansion tank is not the real fix by itself. The pressure problem should be corrected, usually with a properly adjusted or replaced PRV, and then the expansion tank should be sized and charged to match the corrected pressure.
Do You Need an Expansion Tank?
The practical homeowner answer comes down to three checks: whether the plumbing system is closed, what the actual static water pressure is, and whether the expansion tank is sized and pre-charged correctly.
The Tool Desk
Outbyte PC Repair FREERepair Windows errors before they cause bigger problemsFix Now →Outbyte Driver Updater FREEScan for outdated or missing drivers - takes under a minuteDriver Scan →Check 1: Look for a closed-system device
Start near the main water shutoff. Look for a bell-shaped PRV, a backflow preventer, or a check valve. If your water meter was recently replaced, the utility may have installed a check device even if nothing obvious changed inside the home. Irrigation systems can also have backflow equipment that changes how pressure behaves in parts of the plumbing system.
This visual check is useful, but it is not perfect. Some check valves are hidden, buried, or integrated into meter equipment. If an inspector or plumber tells you the system is closed, take that seriously even if you do not see a separate valve by the water heater.
Rank #2
- Effective Thermal Expansion Management: The TT FLEX water expansion tank is designed to handle thermal expansion in closed-loop heating or cooling systems, ensuring that your system runs smoothly without damaging your equipment.
- Easy to Install: The tank's compact size and easy-to-install design make it an ideal choice for professional contractors and DIY enthusiasts. With its simple installation process, you can quickly and easily add this expansion tank to your system.
- Ample Capacity: The TT FLEX water expansion tank has a generous 2.1 gallon capacity, making it perfect for smaller heating or cooling systems. This capacity allows for efficient thermal expansion management without taking up too much space.
- Appliance-Grade Finish: The tank is finished with appliance-quality paint, which helps prevent external corrosion and rust. This finish not only enhances the durability of the tank but also adds an aesthetically pleasing look.
- High-Quality Construction: The tank features a 100% butyl diaphragm and plastic liner, which effectively separates the system water from the tank's air precharge. This construction ensures optimal performance and durability.
Check 2: Measure water pressure
A basic water pressure gauge costs roughly $10 to $25 and threads onto a hose bibb, laundry connection, or water heater drain connection. For a homeowner-safe test, connect the gauge to a cold-water hose bibb, open the valve, and read the static pressure when no fixtures are running.
If the reading is around 40 to 60 psi, that is common. If it is 70 to 80 psi, the system is on the high side and should be reviewed carefully. If it is above 80 psi, call a plumber to evaluate the PRV or pressure control. High static pressure shortens the life of expansion tanks, water heaters, toilet valves, supply hoses, and fixtures.
Check 3: Watch what happens after the water heater fires
Thermal expansion shows itself during recovery, meaning the period after hot water has been used and the water heater is heating a fresh tank of cold water. A pressure gauge with a lazy hand, also called a peak-reading hand, can show whether pressure climbs sharply after the burner or elements run.
A large pressure increase after heating is a practical sign that thermal expansion is not being controlled. If the temperature and pressure relief valve drips after hot-water use, do not ignore it and do not cap it. The T&P valve is a safety device. Discharge from that valve is a symptom that needs diagnosis.
Code and Permit Requirements
Plumbing code language varies by state, city, and local amendments, but the direction is consistent: where a check valve, backflow preventer, or similar device creates a closed system, thermal expansion needs to be controlled.
The 2024 International Plumbing Code includes a thermal expansion control requirement for water heaters where a check valve or backflow prevention device is installed in the cold-water supply. The International Residential Code also addresses thermal expansion control in residential water distribution systems. Under the Uniform Plumbing Code approach, an adequately sized expansion tank or approved device is required on the building side of a backflow preventer, check valve, or other device that prevents pressure relief back into the supply.
Quick wins for a faster PC:
Fix the driver behind crashes, sound loss and screen glitchesFind Drivers →Clear out junk files and repair common Windows errorsFree Scan →Scan for outdated or missing drivers - takes under a minuteDriver Scan →That does not mean every house in America has the exact same inspection checklist. Local adoption matters. A contractor should verify the adopted plumbing code, local amendments, permit rules, and utility requirements before installation.
When we replace water heaters, inspectors commonly look beyond the expansion tank. Depending on the jurisdiction and installation type, they may check the T&P relief valve and discharge pipe, drain pan, combustion air, venting, gas connector, sediment trap, electrical disconnect, seismic strapping where required, water shutoff, permit card, and whether thermal expansion control is present.
For homeowners, the main point is simple: if you are replacing a water heater, ask about the expansion tank before the job is priced. Adding it during the replacement is usually cleaner and less expensive than scheduling a separate plumbing visit later.
What Size Expansion Tank Do You Need?
Many standard 40- to 50-gallon residential tank water heaters use a 2-gallon potable-water expansion tank at moderate pressure. That is common, but it is not a universal rule.
Free tools Windows power users keep installed
One-click scans. No signup required.
Rank #3
- FUNCTION: Designed to manage increased water volume caused by thermal expansion in residential water heater and hot water storage tank systems
- COMPATIBILITY: Works with domestic water heating systems that utilize backflow preventers or check valves to maintain safe water pressures
- CONSTRUCTION: Features a durable butyl rubber diaphragm that effectively separates system water from the tank's inner walls
- PROTECTION: Includes a polypropylene liner that helps prevent direct contact between water and tank surface, enhancing longevity
- SAFETY: Helps prevent excessive pressure buildup in closed water heating systems, protecting plumbing fixtures and appliances
Correct sizing depends on several numbers:
- Water heater storage capacity, such as 40, 50, 75, or 100 gallons
- Incoming static water pressure
- Water heater temperature setting
- Relief valve pressure rating, often 150 psi on residential water heaters
- Whether the system serves unusually large fixtures, recirculation, or higher-demand layouts
Manufacturers publish sizing tables and calculators for this reason. A small 2-gallon tank may be fine for a typical 50-gallon heater at moderate pressure, but the same tank may be undersized for a larger storage heater, high incoming pressure, or a system with higher temperature settings. Larger homes, commercial applications, multifamily work, and boilers require more careful sizing.
Tank orientation and support also matter. Some expansion tanks are installed vertically, some horizontally, and some manufacturers allow either orientation if the tank is properly supported. A water-filled failed tank can become heavy. We do not like seeing unsupported tanks hanging off copper or PEX lines by the connection alone. Brackets, straps, blocking, or manufacturer-approved support should be used where the piping is not enough to carry the load safely.
Pre-Charge Pressure Is Not a Small Detail
Expansion tanks ship with an air pre-charge, often around 38 to 40 psi. That factory setting is only a starting point. Manufacturers commonly instruct installers to set the tank pre-charge to match the home’s incoming water pressure before the tank is installed.
For example, if the home’s corrected static pressure is 60 psi, the tank air side should generally be adjusted to 60 psi before installation. If the tank is left at 40 psi on a 70 psi system, it will not perform as intended. Water may enter the tank too soon, reduce useful acceptance volume, and leave less room to absorb expansion.
The pre-charge is checked at the Schrader valve, which looks like a tire valve. This should be done with the tank isolated from water pressure. On an existing system, that usually means shutting off water, relieving pressure, and then checking the air side. If water comes out of the Schrader valve, the bladder has failed and the tank should be replaced.
Pre-charge is one of the most common shortcuts we see. The tank may be present, the installation may look tidy, and the system may still have pressure problems because the tank was never charged to match the house.
Expansion Tank Cost in 2026
For a typical U.S. home, the installed cost for a water heater expansion tank is usually about $150 to $450, with a common national average around $325. A broader replacement range is about $300 to $800 when access is difficult, piping needs to be modified, the tank is larger, permits are involved, or the plumber is also correcting pressure problems.
The tank itself is not the whole job. Small potable-water expansion tanks often cost about $30 to $200 depending on size, brand, connection size, warranty, and rating. Labor, fittings, support, pressure testing, and permit coordination make up the rest.
| Project scenario | Typical 2026 cost | What affects the price |
|---|---|---|
| Small expansion tank only, parts | $30-$200 | Tank size, potable-water rating, brand, warranty, connection size |
| Expansion tank added during water heater replacement | About $90-$350 plus related labor | Plumber already on site, cold-water piping already being modified, permit already open |
| Standalone expansion tank installation | $150-$450 typical | Access, piping material, support, local labor rate, pressure testing |
| More involved replacement or pressure correction | $300-$800 | Larger tank, PRV work, cramped location, code upgrades, permit fees |
| Standard tank water heater replacement | Commonly $900-$2,500 | Heater size, fuel type, venting, code upgrades, drain pan, disposal, permits |
| Tankless water heater installation | Often $2,400-$5,400 | Gas sizing, venting, electrical work, condensate drain, water treatment, permits |
The best time to address the expansion tank is often during water heater replacement. The plumber is already there, the system is drained or partially drained, the permit and inspection process may already be underway, and the cold-water piping can be modified with less extra labor.
Signs Your Expansion Tank Is Missing, Failed, or Set Up Wrong
A missing or failed expansion tank does not always create dramatic symptoms. Sometimes the only clue is a T&P valve that drips occasionally after showers or laundry. Other times the system shows repeated nuisance problems across fixtures.
Rank #4
- WATER EXPANSION TANK: With a generous 4.5 tank gallon volume, the Watts Potable Water Expansion Tank is designed for use in commercial and residential water heating systems to control the thermal expansion of hot water and maintain safe pressures.
- VERSATILE MOUNTING: This potable water expansion tank is designed for easy installation, mounting directly to the supply piping. It features a 3/4-inch male connection and a stainless steel inlet.
- DURABLE CONSTRUCTION: This tank is constructed from high-quality carbon steel with an epoxy finish, ensuring long-lasting performance. It is also equipped with a durable expansion membrane that minimizes the loss of the air charge.
- COMPATIBILITY: These tanks may be used with all types of Direct Fired Hot Water Heaters (gas, oil or electric) and hot water storage tanks. Comes with a maximum pressure of 150psi (10 bar).
- EVERY DROP COUNTS: Water. It's in our name and close to our hearts. Everything we design is made to keep the Earth's most precious resource safer, cleaner, and more useful for our customers.
Common warning signs include:
- Water dripping from the water heater T&P relief valve
- Pressure gauge readings that climb sharply after the water heater runs
- A tank that feels completely waterlogged when tapped
- Water coming out of the Schrader air valve
- Visible corrosion, rust trails, or leakage at the tank connection
- Frequent toilet fill valve failures or supply line leaks
- Banging or water hammer symptoms that appear after water heater cycles
Expansion tanks have finite service lives. Many residential tanks last about 5 to 10 years, but that is not a guarantee. High pressure, aggressive water, incorrect pre-charge, poor support, and a failed PRV can shorten the life considerably. If the expansion tank is the same age as an aging water heater, replacing it during water heater work is often cheaper than waiting for a separate failure.
A dripping T&P valve should never be treated as normal. It may be caused by thermal expansion, excessive pressure, overheating, a weak relief valve, or a combination of problems. The right repair starts with diagnosis, not with plugging, capping, or routing the discharge somewhere it cannot be seen.
Recommended Free Tools
Tankless Water Heaters and Expansion Tanks
Tankless water heaters do not store 40 or 50 gallons of hot water, so homeowners often assume expansion tanks never apply. That is not always correct.
Whether a tankless installation needs thermal expansion control depends on the plumbing system, local code, manufacturer instructions, and whether there is stored hot water elsewhere in the system. Some tankless installations include recirculation loops, small buffer tanks, check valves, mixing valves, or fixtures that can create expansion conditions. In a closed system, the code official or manufacturer may still require an approved thermal expansion control method.
For a straightforward tankless replacement, we verify the adopted local code, look for check valves and PRVs, review the manufacturer’s installation instructions, and check whether the system has recirculation or storage. The answer is not based only on whether the heater has a tank.
Independent reader supportYour contribution helps us test, update, and keep practical guides available for everyone.When to DIY vs. When to Hire a Pro
A homeowner can safely do a few inspection steps. You can look for an existing expansion tank near the water heater, read the label, note the date, check for rust or leakage, and measure static water pressure with a hose-thread pressure gauge. You can also look near the main shutoff for a PRV or backflow device.
Installation is a different matter. An expansion tank connects to the potable water system, must be correctly sized, must be pre-charged to the house pressure, and often falls under permit or inspection requirements when paired with water heater replacement. The work may involve copper soldering, press fittings, threaded joints, dielectric considerations, support brackets, and pressure testing.
DIY may be reasonable if you have plumbing experience, local code allows homeowner plumbing work, the water heater is accessible, the piping is straightforward, and you know how to shut down, drain, cut, join, support, and test the system. Even then, you should verify whether a permit is required.
Hire a licensed plumber when the water heater is gas-fired, the installation is being inspected, the home has pressure over 80 psi, the PRV may be failing, the T&P valve is discharging, the tank location is cramped, or you are not comfortable modifying pressurized potable-water piping. Also hire a pro if the home has recirculation, a tankless system with check valves, a boiler, or any mixed-use domestic/hydronic equipment.
What We Check Before Installing One
On our projects, we want the expansion tank to solve the actual problem, not just satisfy a checklist. Before installation, we typically verify the water heater capacity, static pressure, presence of a PRV or check valve, pipe material, available support, local code requirements, and the condition of the T&P relief valve and discharge piping.
Crashes, No Sound, or Screen Glitches?
Random freezes, missing sound and display glitches usually trace back to one bad driver. Find and replace yours safely.Free scan · under a minuteWindows Errors? Fix Them Before They Spread
Repair common Windows errors and clear accumulated junk for a smoother, more stable PC - no reinstall needed.Free scan · no reinstallBest Value
- HELPS REDUCE PRESSURE BUILDUP: Absorbs excess pressure caused by water expansion during heating to help protect your system.
- PROTECTS PLUMBING & WATER HEATER: Helps reduce strain on pipes, valves, and appliances, supporting longer system life.
- PRE-CHARGED FOR CONSISTENT PERFORMANCE: Factory pre-charged to 40 PSI with a maximum charge of 80 PSI for reliable operation.
- BUILT FOR HIGH HEAT APPLICATIONS: Designed to withstand temperatures up to 200°F for use with residential water heaters.
- EASY INSTALLATION: Standard 3/4" MNPT fitting allows for quick connection to compatible plumbing systems.
If static pressure is too high, we address that first. Installing an expansion tank on a system running above 80 psi without correcting pressure is poor practice. The tank may fail early, and the rest of the plumbing remains stressed.
We also size the tank using manufacturer guidance instead of guessing from appearance. A 2-gallon tank is common, but common is not the same as correct. Once the tank is selected, we set the pre-charge to match the measured supply pressure, install it on the cold-water side where required, support it properly, restore water, purge air, and check for leaks. After the water heater recovers, a pressure reading should remain controlled instead of climbing aggressively.
The Bottom Line
You need a water heater expansion tank if your home has a closed plumbing system and heated water has nowhere to expand safely. In many U.S. jurisdictions, that condition triggers a code requirement for thermal expansion control during water heater installation or replacement.
The tank itself is simple, but the setup is not guesswork. The right installation depends on system pressure, water heater size, temperature, local code, tank sizing, pre-charge, and proper support. Expect a typical installed cost around $150 to $450, with more involved work landing around $300 to $800. If you are already replacing a water heater, adding or replacing the expansion tank at the same time is usually the most efficient approach.
Recommended Free Tools
If your T&P valve is dripping, your pressure is over 80 psi, or your expansion tank is old, corroded, unsupported, or waterlogged, have the system checked. Pressure problems do not get better by being ignored, and the least expensive repair is usually the one made before the water heater, valves, or fixtures start failing.
Frequently Asked Questions
Is a water heater expansion tank required by code?
Often, yes, when the home has a closed plumbing system caused by a check valve, PRV, backflow preventer, or similar device. The IPC, IRC, and UPC all address thermal expansion control, but local code adoption and amendments determine exactly what is enforced.
How much does it cost to install a water heater expansion tank?
In 2026, a typical installed cost is about $150 to $450. More involved replacements can run $300 to $800 if piping changes, larger tanks, access problems, permits, or PRV repairs are involved.
Can I install an expansion tank myself?
Some experienced homeowners can, if local rules allow it and the piping is straightforward. Most homeowners should hire a licensed plumber because the tank must be sized, pre-charged, supported, leak-tested, and installed according to code and manufacturer instructions.
The Tool Desk
Outbyte PC Repair FREEClear out junk files and repair common Windows errorsFree Scan →Outbyte Driver Updater FREEScan for outdated or missing drivers - takes under a minuteDriver Scan →What pressure should my expansion tank be set to?
Manufacturers commonly require the tank pre-charge to match the home’s incoming static water pressure before installation. Many tanks ship around 38 to 40 psi, but that is not automatically correct for every house.
How long does a water heater expansion tank last?
Many residential expansion tanks last about 5 to 10 years, but high pressure, poor water quality, incorrect pre-charge, bad support, or a failed PRV can shorten that lifespan.
Does a tankless water heater need an expansion tank?
Sometimes. Tankless heaters do not store a large tank of hot water, but a closed plumbing system, recirculation loop, buffer tank, check valve, or local code requirement can still make thermal expansion protection necessary.
Quick Recap
