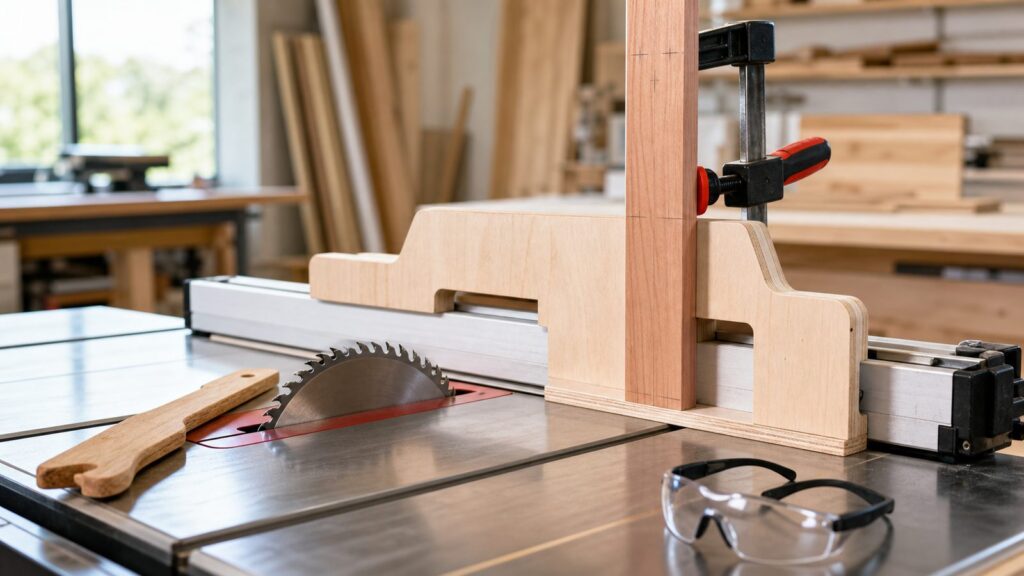

A table saw rip-fence saddle is a custom-fit shop jig that slides over the existing rip fence and gives you a taller, squarer, clampable face for cutting vertical or narrow parts. For outdoor construction work, its value is simple: it helps make repeatable joinery more controlled when fabricating deck rails, gates, planter frames, pergola details, trellis parts, and fence components.
On our job sites and in the shop, we use jigs like this when the same cut has to be made cleanly more than once. A rip-fence saddle does not make a table saw harmless, and it does not replace guards, riving knives, push sticks, sharp blades, outfeed support, or judgment. It is a workholding accessory. Built well, it keeps the workpiece square to the table and tight to the fence so the cut is more predictable.
As an Amazon Associate I earn from qualifying purchases.
Free tools Windows power users keep installed
One-click scans. No signup required.
The best version is not complicated. Most are made from 3/4 in. plywood, MDF, or melamine, assembled as a snug U-shaped sleeve that rides over the fence. The key is fit: too loose and the workpiece can drift; too tight and the jig binds during the cut. For a contractor or serious DIY builder, a properly tuned saddle can be the difference between ten matching gate rails and ten pieces that each need hand correction.
What a Rip-Fence Saddle Actually Does
A rip-fence saddle slips over the table saw’s rip fence and creates a moving auxiliary fence face. Depending on how you build it, it can provide a tall vertical support, a replaceable sacrificial backer, a stop block, clamp mounting points, or a guided face for upright workpieces.
#1 Best Overall
- 【Durable Metal Construction】Crafted from high-quality metal, this tenoning jig ensures a secure and stable grip on your workpiece, enhancing safety and reducing the risk of injury during operation
- 【Technical Specifications】Chute width: 19.05 mm; Chute depth: 9.525 mm; Guide rod size: 265*19*9.5 mm; Maximum grip: 82.5 mm; Net weight of the whole machine: 8.7 KG
- 【Adjustable Clamping Angle】The angle of the rear pallet can be adjusted between 0-45°; The angle of the backing can be adjusted between 0-15°
- 【Efficient & User-Friendly Design】Our table saw accessories have multi-position control levers for easy adjustment and better locking leverage, making it a versatile choice for many woodworkers
- 【Precision Cutting】Compatible with most table saws, this jig ensures accurate cuts with a chute center-to-saw blade distance ranging from 95 -170 mm/3.74-6.7 in.
Think of it as a fitted sleeve, not a universal accessory. It rides on the exact fence installed on your saw. A cabinet saw with a rectangular steel Biesemeyer-style fence needs a different saddle than a portable jobsite saw with a narrower aluminum fence. That is why the jig should be built around the actual fence, not from guessed dimensions.
The saddle is most useful when the workpiece needs side support and rear support at the same time. A common example is cutting tenon cheeks on the end of a rail. The rail stands upright against the saddle face, gets clamped in place, and then the saddle carries the rail past the blade. The workpiece is not balanced by hand pressure alone.
What’s actually slowing this PC down?
Pick the symptom - the matching free tool is one click away.
For outdoor structures, that added control matters because the stock is often larger, longer, and less perfect than furniture-grade lumber. Cedar gate rails, pressure-treated framing, PVC trim, and composite boards can all move, flex, or carry a slight bow. The jig cannot fix bad stock, but it can keep properly milled stock aligned during the cut.
Best Uses for Outdoor-Structure Fabrication
A rip-fence saddle is not a general-purpose table saw fix. It earns its keep when you are repeating controlled joinery or support cuts on parts that are awkward to hold against a standard fence.
Tenons for rails and frames
Gate rails, trellis rails, planter frames, and decorative screen panels often use tenons or tenon-like shoulders. A saddle gives the rail a tall backing face and lets you clamp the part before the cut. For example, if you are cutting 1/2 in. shoulders on a set of 1 1/2 in. thick cedar rails, the saddle helps keep each rail vertical while the blade removes the same amount from each face.
Half laps and bridle joints
Half-lap shoulders and bridle joints show up in pergola trim, garden structures, small shade screens, and custom fence panels. A saddle can help hold the workpiece at a consistent orientation while you nibble away waste with repeated passes or use a properly sized dado setup where allowed by the saw manufacturer.
Square notches and repeat stops
For repeated notches, the saddle can carry a stop block or reference face. This is useful when making matching decorative tails, planter slats, or rails that need the same shoulder location. The stop must be positioned so it does not trap offcuts between the blade and fence.
Tall backer support
A tall replaceable backer face reduces tear-out and keeps the workpiece supported as the blade exits. For finish-visible cedar, hardwood, or PVC trim, that backer can save real time because you are not sanding or recutting blown-out shoulders.
How It Differs From Other Table Saw Jigs
Several table saw accessories look similar from a distance, but they solve different problems. Confusing them can lead to poor setup choices.
| Accessory | Primary Use | Best Fit | Key Limitation |
|---|---|---|---|
| Rip-fence saddle | Slides over the rip fence to support and clamp vertical or narrow workpieces | Tenons, notches, repeatable outdoor joinery parts | Must be custom-fit to the fence and kept clear of the blade path |
| Miter-gauge tenoning jig | Uses the miter slot to guide upright work | Precise furniture-style tenons and shop joinery | Depends on miter slot fit and may have less rip-fence-based repeatability |
| Crosscut sled | Supports stock for square crosscuts | Panels, trim, small parts, repeated crosscuts | Not intended for guiding stock along the rip fence |
| Sacrificial fence | Temporary face attached to fence for blade clearance or dado work | Rabbets, dados, close-clearance operations | Usually lacks the saddle’s wraparound fit and clamping support |
| Featherboard | Applies side or down pressure | Keeping stock tight to the fence or table | Does not replace a clampable vertical support face |
| Aftermarket fence system | Improves saw fence accuracy and capacity | Upgrading the saw’s base rip system | Costs several hundred dollars and still may need auxiliary jigs |
The saddle is attractive because it is inexpensive and specific. You are not rebuilding the saw. You are making one operation cleaner, safer, and more repeatable.
Recommended Free Tools
Materials, Dimensions, and Build Details That Matter
Most saddles are built from 3/4 in. sheet goods. Cabinet-grade plywood is our first choice for durability and screw holding. MDF is flat and inexpensive, but it is heavier, weaker at screw edges, and more vulnerable to moisture. Melamine slides well, but screw holding and edge durability can be weaker unless the joinery is planned carefully.
A practical saddle has three main parts: two side panels and a top bridge. The side panels should extend low enough to register against the fence without interfering with the table. The bridge should be flat and square. If the saddle will carry clamps or a tall face, add a front work face made from 3/4 in. plywood and make it replaceable with screws.
Rank #2
- 【Multi-functional woodworking clamps】 This table saw jig for woodworking is a quick tightening device, use the collet to quickly clamp the wood and start working, suitable for table saws, greatly improving your work efficiency.Table Saw Chute Standard 19.05mm T-Type Chute.
- 【Important parameter】 Distance from chute center to saw blade:Minimum -----95MM.Maximum -----170MM.Chute width:19.05mm.Chute depth:9.525mm.
- 【Adjustable clamping angle】 The angle of the rear pallet can be adjusted from 0 to 45 degrees, and the angle of the back plate can be adjusted from 0 to 15 degrees, which can realize a variety of sawing methods.
- 【Metal material】 The tenon jig for table saw is made of metal, which is strong and durable, not easy to be damaged and has a long service life.
- 【Note】 Measure your table saw T-slot before buying please.
For a typical rectangular fence around 3 in. wide and 2 1/2 in. tall, the inside of the saddle might be built with about 1/32 in. to 1/16 in. total clearance. The actual number matters less than the feel: it should slide smoothly with one hand and should not rock side to side. A reliable method is to assemble the saddle around the fence using thin shims, playing cards, or plastic laminate scraps as temporary spacers. That creates controlled clearance instead of relying on a tape-measure guess.
For length, 18 in. to 30 in. works for many shop tasks. Shorter saddles are easier to store and slide. Longer saddles provide better support for tall parts and repeatable stops. For gate rails, pergola trim, or planter-frame stock, we usually prefer the longer end of that range because the workpiece has more bearing surface before and after the blade.
Do these 3 things before closing this tab:
1Fix the driver behind crashes, sound loss and screen glitches2Repair Windows errors before they cause bigger problems3Scan for outdated or missing drivers - takes under a minuteKeep two reference faces clean and accurate: the inside face that rides against the saw fence and the outside face that supports the workpiece. Those faces need to stay square to the table and parallel to the blade path. If they are not square, every tenon shoulder or notch will carry that error into the finished assembly.
Cost to Build a Rip-Fence Saddle in 2026
A rip-fence saddle is a shop accessory, not an installed building product, so a single national installed-cost average would be misleading. The cost depends on whether you are using scrap, buying a full sheet, adding clamps, or paying shop labor.
| Option | Typical 2026 Cost | What It Includes | Best For |
|---|---|---|---|
| Scrap-material DIY saddle | $0-$25 | Leftover 3/4 in. plywood or MDF, screws, glue, paste wax, existing clamps | One-off shop use when suitable flat material is already on hand |
| New-material simple saddle | $45-$100 | Project panel or partial-sheet material, glue, screws, knobs or basic clamp hardware | DIY builders who want a dedicated jig without buying a full sheet |
| Full-sheet build with upgrades | $70-$150+ | Full 3/4 in. sheet plus T-track, toggle clamps, threaded inserts, UHMW tape, replaceable faces | Frequent repeat work or small professional shops |
| Commercial plans or small accessories | $5-$100+ | Downloadable plans, stop blocks, thin-rip jigs, brackets, featherboards, auxiliary-fence hardware | Builders who want a proven layout or modular hardware |
| Professional shop-built jig | $75-$450 labor value | 1-3 hours at a $75-$150/hr shop-rate assumption, plus materials | Production work where repeatability saves more time than the jig costs |
Current 3/4 in. 4 ft. by 8 ft. sheet prices in the U.S. commonly put MDF around $49.98, Sande plywood around $69.85, birch around $74.98, maple around $74.98, red oak around $79.98, and melamine around $47.20. You do not need a full sheet for one saddle, but full-sheet pricing explains why a simple scrap build and a fully dressed jig can have very different costs.
Hardware is the swing factor. Star knobs, T-bolts, threaded inserts, toggle clamps, T-track, and slick tape can add $10-$60. Add only what the operation requires. A saddle with one replaceable face and two well-positioned toggle clamps is often more useful than a complicated jig covered with hardware.
Windows Errors? Fix Them Before They Spread
Repair common Windows errors and clear accumulated junk for a smoother, more stable PC - no reinstall needed.Free scan · no reinstallCrashes, No Sound, or Screen Glitches?
Random freezes, missing sound and display glitches usually trace back to one bad driver. Find and replace yours safely.Free scan · under a minuteSafety: What the Saddle Helps With and What It Does Not
The biggest risks during these cuts are kickback, binding, and hand proximity to the blade. Ripping operations are already more prone to kickback when stock twists, pinches, drifts away from the fence, or contacts the rear teeth of the blade. Vertical and narrow workpieces add another problem: they are harder to hold securely with bare hands.
A good saddle helps by giving the workpiece a stable vertical face and a way to clamp the part before it moves through the blade. That does not eliminate the need for normal table saw safeguards. Use a sharp, appropriate blade. Keep the stock guided parallel to the rip fence. Use push sticks or push blocks for small parts. Stand to the side of the blade path. Use eye and face protection. Use a spreader, riving knife, anti-kickback device, and blade guard when the operation allows them.
Some tenoning and notch operations may conflict with a standard blade guard. That decision should never be casual. If a guard or riving knife must be removed for a specific cut, the setup needs an alternate safe method: secure clamping, verified blade clearance, controlled feed path, outfeed support, and a plan to reinstall the safety equipment immediately after the operation.
Before cutting, make a dry run with the saw unplugged or off. Slide the saddle through the complete travel. Confirm that clamps, knobs, screws, T-track, and your hands stay clear of the blade zone. Look at the rear and top of the workpiece because the blade exits there during tenon and notch cuts. Mark the blade-clearance zone directly on the jig and keep all fasteners out of that area.
As of 2026, there is no new federal consumer requirement mandating active blade-contact injury mitigation technology on all table saws. That does not change the practical standard: use the safest available saw setup for the operation, maintain the blade and fence, and do not treat a jig as a substitute for safe technique.
Step-by-Step Build Approach
1. Measure the actual fence
Measure the fence width, height, and any irregularities such as rounded edges, bolt heads, measuring tapes, or plastic glide pads. Do not assume your fence is perfectly rectangular. Many jobsite saw fences have lips, grooves, or faces that are not identical on both sides.
Rank #3
- 【Universal Compatibility】Designed to fit table saws featuring a standard 19.05mm T-type chute, this clamp suit works seamlessly when the distance from the chute center to the saw blade ranges between 95mm (minimum) and 170mm (maximum). Please measure your table saw's T-slot prior to purchase.
- 【Quick Clamping】Equipped with a user-friendly collet, this clamp enables rapid and secure clamping of wood materials. Spend less time on setup and more on crafting—simply fasten the wood firmly with the collet and start your sawing tasks immediately.
- 【Multi-Angle Adjustment】The rear pallet adjusts from 0 to 45 degrees, while the backing tilts from 0 to 15 degrees. This wide range of angle options allows you to achieve various sawing styles and meet diverse woodworking needs, from straight cuts to angled finishes.
- 【Robust Construction】Boasting a guide rod size of 265*19*9.5mm and a maximum grip capacity of 82.5mm, this clamp offers stable and reliable performance for handling different wood sizes.
- 【Precision-Engineered Design】Crafted with attention to detail, the clamp features a chute depth of 9.53mm that enhances stability during clamping and sawing. Its structured design ensures consistent pressure distribution, minimizing wood movement and delivering precise, clean cuts—ideal for woodworking projects requiring accuracy and uniformity.
2. Cut flat parts from stable material
Use 3/4 in. cabinet-grade plywood if possible. Cut two side panels and one top bridge. A common starting size is two side panels around 6 in. to 10 in. tall by 18 in. to 30 in. long, with a top bridge sized to span the fence plus controlled clearance. The work face can be another 3/4 in. panel fastened to the outside of one side.
3. Assemble around the fence with shims
Place thin cards or shims along the fence faces and top, then assemble the saddle around them. The shims create a small sliding gap. Clamp the parts square while the glue sets, and use screws or brads only where they cannot enter the blade-clearance zone later.
The Tool Desk
Outbyte Driver Updater FREEFix the driver behind crashes, sound loss and screen glitchesFind Drivers →Outbyte PC Repair FREERepair Windows errors before they cause bigger problemsFix Now →4. Square and test the reference face
After assembly, check that the work face is square to the saw table. If the saddle rocks, binds, or leans, fix that before cutting. A jig that is off by 1/16 in. over a short tenon can multiply into visible gaps across a gate or trellis assembly.
5. Add clamps and a replaceable backer
Toggle clamps or dedicated hold-downs are useful for repeat cuts, but their placement matters. Mount them so the clamp arms, bolts, and handles cannot enter the blade path at full travel. A replaceable backer face should be easy to remove after it gets chewed up or loses support quality.
6. Wax only the sliding contact areas
Paste wax or slick tape can make the saddle slide smoothly, but keep it off the clamp pads and work-contact face. Those areas need grip. A slick work face can let a rail creep during the cut.
Stock Preparation Matters More Than People Think
A precise jig cannot overcome twisted cedar, cupped deck boards, or wet pressure-treated lumber that moves after cutting. For outdoor parts, start with straight, dry stock whenever possible. Let pressure-treated material stabilize before precision joinery. Reject pieces with severe twist, large loose knots near the cut, or grain defects that may split under clamp pressure.
Quick wins for a faster PC:
Repair Windows errors before they cause bigger problemsFix Now →Scan for outdated or missing drivers - takes under a minuteDriver Scan →Clear out junk files and repair common Windows errorsFree Scan →For cedar and redwood, use sharp blades and light passes to reduce tear-out. For PVC and composite trim, confirm the blade is suitable for the material and support the offcut so it does not chatter. For pressure-treated lumber, manage dust carefully, avoid forcing wet stock, and clean the saw afterward. Preservative-treated dust and wet sawdust are not friendly to tools or lungs.
If the finished outdoor assembly will use exposed fasteners or connectors, choose corrosion-resistant hardware rated for the material. Pressure-treated lumber often requires compatible hot-dip galvanized or stainless fasteners and connectors. The saddle helps cut the parts accurately; it does not decide the structural hardware, span, footing, ledger, guardrail, or connection details.
Permits and Code Considerations
You do not need a building permit to make a table saw jig. The saddle is a shop accessory. The structure made from the parts is a separate issue.
Many small detached accessory structures are exempt from permits in some jurisdictions when they stay below specific size limits, and many fence, deck, patio-cover, pergola, and retaining-wall rules depend on height, area, attachment to the house, utilities, snow load, wind exposure, and local amendments. One county may exempt a low fence or small shed; another may require documentation because of zoning, setbacks, wildfire rules, historic districts, easements, or structural loads.
For homeowners, the practical rule is this: use the jig for accuracy, then verify the project requirements before building. Decks, covered patios, attached pergolas, elevated platforms, structural guards, stairs, and large shade structures commonly need permits or inspections. Even when a permit is not required, the work still needs to be structurally sound and code-compliant where applicable.
Independent reader supportYour contribution helps us test, update, and keep practical guides available for everyone.Common Mistakes to Avoid
The most common failure is building the saddle too loose. If it can rock on the fence, the workpiece can drift into the blade or leave inconsistent shoulders. The second most common failure is making it too tight. A binding saddle causes uneven feed pressure, and uneven feed pressure is exactly what you do not want near a spinning blade.
Another frequent mistake is using warped material for the jig. Construction sheathing with voids, bowed plywood, or damp MDF is not a precision base. If the jig face is not flat, the work will not be flat against it.
Rank #4
- 【High Work Efficiency】This multifunctional woodworking clamps is a quick clamping device. Use the chuck to clamp the wood quickly for work. Work is very efficient. Reduce time cost for you
- 【Strong Applicability】Our tenoning clamps slide rails are set according to American regulations. Fits most American table saws. But not all American table saws. Our woodworking clamps' table saw chute is standard 19.05mm T-Type chute. Distance from chute center to saw blade: Minimum -95MM; Maximum-170MM. So a friendly reminder, please measure the size of your own table saw T-slot before buying
- 【Adjustable Clamping Angle】The angle of the rear pallet can be adjusted between 0-45 degrees; The angle of the backing can be adjusted between 0-15 degrees. Therefore, a variety of sawing methods can be realized
- 【Parameters】Chute width：19.05mm; Chute depth：9.525mm; Guide rod size：265*19*9.5mm; The minimum distance from the center of the chute to the saw blade: 95mm; The maximum distance from the center of the chute to the saw blade：170mm; Maximum grip.：82.5mm; Net weight of the whole machine：8.7KG
- 【Strong and Durable】This tenon jig is made of high quality metal material. Every part of the product is produced by meticulous workmanship. Strong and durable, long service life. It can make satisfactory wooden handicrafts for you
Do not rely on hand pressure for tall or narrow parts when clamps are practical. Do not put screws, knobs, T-track, or clamp hardware near the blade-clearance zone. Do not forget that the blade exits the rear or top of the workpiece. Do not use the rip fence as a length stop in a way that traps cutoff pieces between the blade and fence.
Finally, test on scrap. Before cutting expensive cedar, hardwood, composite trim, or finished PVC, make at least one test cut in similar material. Check shoulder depth, squareness, tear-out, and repeatability. A 10-minute test can save a $40 board and an hour of rework.
When to DIY vs When to Hire a Pro
DIY makes sense if you already own and understand the table saw, have flat 3/4 in. material, and need a repeatable operation for a manageable project. A homeowner building a garden trellis, raised planter, simple gate, or decorative screen can often build a basic saddle in 1-3 hours and keep material cost under $100.
Hire a professional or use a qualified shop when the project involves structural outdoor assemblies, expensive finish material, tight visual joinery, or repeated parts where mistakes compound quickly. If the work includes deck guards, stairs, elevated framing, attached pergolas, load-bearing connections, or code inspections, the cutting jig is only one small piece of the job. The larger concern is whether the finished structure is properly designed, connected, flashed, fastened, and permitted.
There is also a safety threshold. If you are unsure how to set blade height, maintain a safe feed path, use push sticks, evaluate kickback risk, or reinstall guards and riving knives after a specialty operation, do not start by cutting upright joinery on a table saw. Get instruction, use a different tool method, or hire the cut out.
Crashes, No Sound, or Screen Glitches?
Random freezes, missing sound and display glitches usually trace back to one bad driver. Find and replace yours safely.Free scan · under a minuteWindows Errors? Fix Them Before They Spread
Repair common Windows errors and clear accumulated junk for a smoother, more stable PC - no reinstall needed.Free scan · no reinstallBottom Line
A table saw rip-fence saddle is one of those simple shop jigs that pays off when accuracy and repeatability matter. Built from flat 3/4 in. material, fitted directly to the saw fence, and equipped with thoughtful clamping, it can make tenons, notches, half laps, and decorative outdoor-structure parts cleaner and more predictable.
The fit is the whole game. Build it snug enough to eliminate rocking, loose enough to slide without binding, and square enough that the workpiece stays true through the full cut. Mark the blade zone, keep hardware clear, test the travel with the saw off, and treat every cut as a table saw operation first and a jig operation second.
For homeowners, the saddle can improve shop fabrication. For a finished deck, gate, pergola, fence, or outdoor structure, good construction still depends on dry straight stock, corrosion-resistant fasteners, code-rated connectors, correct layout, and permit compliance where required.
Frequently Asked Questions
What is a table saw rip-fence saddle used for?
It is a shop-made jig that slips over the table saw’s rip fence to support and clamp tall or narrow workpieces. It is commonly used for repeatable tenons, notches, half laps, stop cuts, and outdoor-structure parts such as gate rails, trellis pieces, planter frames, and pergola details.
Is a rip-fence saddle the same as a tenoning jig?
No. A rip-fence saddle rides on the rip fence, while many tenoning jigs ride in the miter slot. Both can support vertical work, but the saddle is usually simpler, custom-fit to the fence, and useful for fence-guided repeat operations.
How tight should a saddle jig fit over the table saw fence?
It should slide smoothly without rocking. A practical target is about 1/32 in. to 1/16 in. total clearance, but fit matters more than the exact number. Build it around the actual fence with thin shims or cards so it is not too loose or too tight.
What material is best for a table saw fence saddle?
Flat 3/4 in. cabinet-grade plywood is usually the best choice because it is durable and holds screws well. MDF is flat and affordable but less durable around fasteners and moisture. Melamine slides well but needs careful fastening because its edges can be weaker.
How much does it cost to build a rip-fence saddle in 2026?
A scrap-material saddle can cost $0-$25. A new-material DIY version typically runs $45-$100, while an upgraded version with toggle clamps, T-track, knobs, and replaceable faces can reach $70-$150 or more. Professional shop labor can add $75-$450 depending on time and rate.
Do these 3 things before closing this tab:
1Scan for outdated or missing drivers - takes under a minute2Repair Windows errors before they cause bigger problems3Fix the driver behind crashes, sound loss and screen glitchesDo I need a permit for outdoor structures made with table-saw-cut parts?
The jig itself does not require a permit. The finished structure might. Decks, attached pergolas, elevated platforms, stairs, guards, large shade structures, and some fences often have local permit or inspection requirements. Check your local building department before construction.
