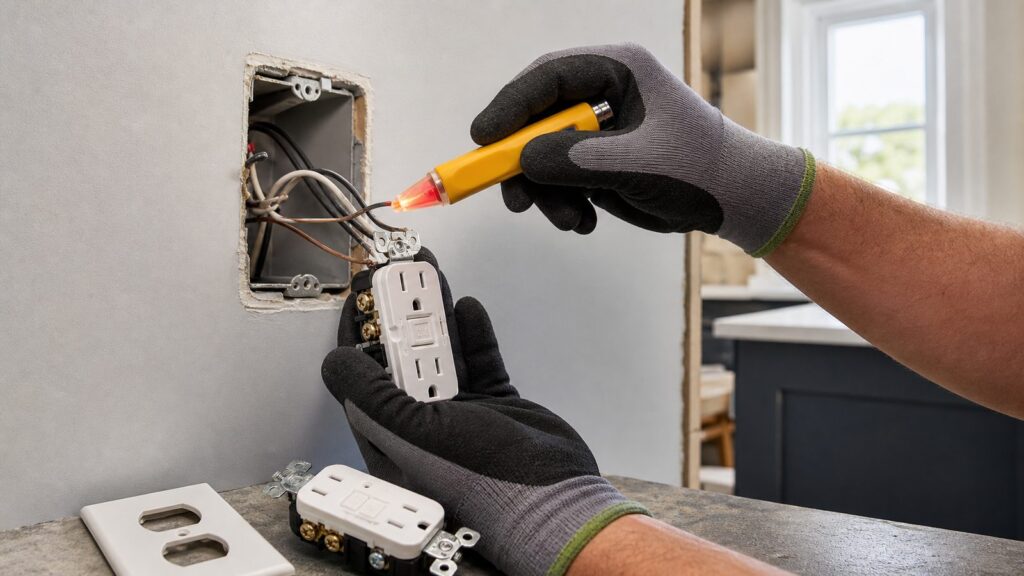

On our job sites, we treat line and load as a circuit-mapping issue, not a color-matching exercise. Wire color, cable position in the box, and the way the previous device was connected are clues, but they are not proof. The reliable question is: which conductors are energized from the panel or upstream source when the device is safely isolated and tested by a qualified person?
This matters most with GFCI receptacles, smart switches, subpanels, disconnects, HVAC equipment, kitchen and bathroom remodels, exterior outlets, garages, laundry rooms, basements, and older homes where wiring may have been changed more than once. A basic receptacle swap can be a 20-minute task for a licensed electrician. A mystery box with shared neutrals, old cable, no grounding conductor, or undocumented downstream outlets can turn into a troubleshooting visit.
Line vs. Load Wiring in Plain English
The line side is the side receiving power from the source. In a house, that source is usually the service panel, a breaker, an upstream receptacle, or a disconnect. In light commercial work, it may also be a junction box, transformer, contactor, or equipment disconnect.
The load side is the side sending power onward. That downstream load might be another receptacle, a bathroom fan, lights, a dishwasher, a garage freezer, an exterior outlet, a furnace service receptacle, or a whole string of devices.
#1 Best Overall
- CLEAR LCD READOUT: GFCI Receptacle Tester features a large backlit LCD readout for easy voltage reading and clear indication of wiring conditions
- TRIP TIME DISPLAY: LCD readout shows the time required to trip a GFCI device, allowing for quick and accurate troubleshooting
- DETECT COMMON WIRING FAULTS: Detect and identify common wiring faults, ensuring electrical safety and proper functionality of GFCI receptacles
- PATENT-PENDING OPEN NEUTRAL & OPEN GROUND DETECTION: Innovative detection system identifies Open Neutral and Open Ground wiring faults, enhancing safety measures
- CONVENIENT AUTO-HOLD FEATURE: Auto-Hold function holds the reading for hard-to-reach outlets, providing convenience and ease of use
The words are relative. A cable that is load leaving one GFCI receptacle may become line entering the next box. That is why line and load are not the same thing as black and white, hot and neutral, or top and bottom. They describe direction of power flow through that specific device or equipment at that specific point in the circuit.
| Term | What it means | Common example | Why it matters |
|---|---|---|---|
| Line | Incoming supply power | Cable from panel to first bathroom GFCI | Powers the device itself |
| Load | Outgoing power to downstream equipment | Cable from GFCI to another bathroom outlet | May extend protection or control downstream devices |
| Hot | Current-carrying conductor | Usually black or red in modern cable | Can be either line hot or load hot |
| Neutral | Grounded circuit conductor | Usually white in modern cable | Must stay paired with the correct circuit |
| Ground | Equipment grounding path | Bare copper or green conductor | Supports fault clearing and device grounding |
In a simple end-of-run receptacle box with only one cable entering the box, that cable is typically the line cable. There is no outgoing load cable because the circuit stops there. In a box with two or more cables, one may be incoming line and another may be outgoing load. In some boxes, there may be more than one onward feed, a switch loop, a shared neutral, or a splice that has nothing to do with the device being replaced.
Why Line and Load Matter on a GFCI Outlet
GFCI outlets are where most homeowners first see the words line and load printed on a device. Manufacturer instructions, including Leviton GFCI instructions, define the line cable as the cable delivering power from the service panel to the GFCI. The load cable is the cable delivering power from the GFCI to another receptacle or device on the same circuit.
If only the line terminals are used, the GFCI receptacle protects that outlet location. If the load terminals are used correctly, the GFCI can also protect downstream receptacles. That can be useful in a bathroom, garage, unfinished basement, laundry area, exterior circuit, crawl space, or kitchen circuit where multiple outlets need GFCI protection.
That protection is not cosmetic. A GFCI compares current leaving on the hot conductor with current returning on the neutral. If enough current is missing, the device assumes some current may be flowing through a person or an unintended path. OSHA describes GFCIs as fast-acting devices that can shut off power in as little as 1/40 second during a ground fault. UL guidance for Class A GFCI protection is commonly associated with a trip range around 4 mA to 6 mA.
That is why line and load errors are not just inconvenience errors. A miswired GFCI may refuse to reset, shut off downstream outlets unexpectedly, make troubleshooting confusing, or leave someone thinking an outlet is protected when it is not. Modern GFCI receptacles often include line-load reversal protection, but we still do not rely on that feature as a substitute for correct identification and testing.
Line and Load Are Not the Same as Hot and Neutral
This is one of the most common mistakes we see in older homes and partial remodels. Line and load describe where power is coming from and where it is going. Hot and neutral describe conductor function within the circuit.
A GFCI device has a line hot and a line neutral. If it feeds downstream outlets, it also has a load hot and a load neutral. Those pairs need to stay paired. Mixing a line hot with a load neutral, or combining neutrals from different circuits, can create nuisance trips, dead outlets, failed inspections, and unsafe conditions.
Wire color helps, but color does not prove direction. In modern residential cable, black is commonly hot, white is neutral, and bare copper is ground. Red may be a second hot, switched leg, or part of a multiwire branch circuit. In older homes, switch loops may reuse white conductors as hot conductors, old work may not follow modern marking practices, and previous repairs may have left behind confusing splices.
Rank #2
- EFFECTIVE GFCI WIRING PROBLEM DETECTION: GFCI Tester detects common wiring problems in standard and GFCI receptacles, ensuring electrical safety
- COMPATIBLE WITH GFCI OUTLETS: Works on GFCI outlets and verifies the proper operation of the ground fault protective device, providing peace of mind
- DURABLE AND TOUGH: Built to withstand a 6.6-foot (2m) drop, ensuring durability and reliability in various working conditions
- WIDE OPERATING TEMPERATURE RANGE: Can be used in temperatures ranging from 32-Degree to 140-Degree Fahrenheit (0-Degree to 40-Degree Celsius), offering versatility
- VERSATILE VOLTAGE SUPPORT: Designed for use with 110/125V AC at 50/60Hz in 3-wire outlets, meeting common voltage requirements
On a construction site, we label before disconnecting. If a device has multiple cables, we identify the breaker, verify power is off before handling conductors, separate and cap conductors safely when appropriate, restore power only for controlled testing, identify the incoming feed with a proper meter, shut power back off, then reconnect and test. That workflow is slower than guessing by color, but it prevents callbacks and unsafe installations.
How to Tell Which Wire Is Line and Which Is Load
The practical answer is that a qualified person tests. A plug-in tester can confirm many common outlet conditions after installation, such as an open ground or reversed hot and neutral, but identifying line and load inside a box often requires opening the device, isolating conductors, and using a meter safely.
For a typical GFCI replacement, the process starts with circuit mapping. Find the breaker. Note everything that loses power when that breaker is off. Check whether nearby bathroom, kitchen, garage, basement, exterior, or laundry outlets are already downstream from another GFCI. Look for labels on protected receptacles. Then open the box and photograph the existing wiring before loosening any terminal screws.
If there is only one cable in the box, that cable is usually the line cable. The new GFCI would normally connect to line only, and the load terminals would remain covered or unused. If there are two cables, one may be line and one may be load. If there are three or more cables, the box may contain multiple downstream feeds or unrelated splices, and the work deserves more caution.
Typical field checks include a non-contact voltage tester as a preliminary screen, a two-lead voltage tester or multimeter for confirmation, and a plug-in GFCI tester after the device is installed. The important part is sequence. Power must be shut off before conductors are handled. Conductors must be separated so they cannot touch. Testing live conductors inside a box is not a casual homeowner task.
What Happens If Line and Load Are Reversed?
With a GFCI receptacle, reversing line and load can cause several different symptoms depending on the device design. The GFCI may not reset. The face outlet may appear dead. Downstream outlets may not be protected. A reset button may seem unreliable. A plug-in tester may show confusing results. On some modern devices, built-in protection prevents the receptacle from energizing when miswired.
The Tool Desk
Outbyte Driver Updater FREEFix the driver behind crashes, sound loss and screen glitchesFind Drivers →Outbyte PC Repair FREEClear out junk files and repair common Windows errorsFree Scan →With switches, smart controls, disconnects, and equipment, the symptoms can be different. A smart switch may not power up because its electronics need a constant line feed and neutral. A disconnect wired backward may still interrupt power in some cases, but the installation can violate listing instructions or create service confusion. HVAC and equipment terminals labeled line and load are there for a reason: the manufacturer expects incoming supply and outgoing equipment conductors to land in specific places.
The larger problem is that line-load mistakes hide inside walls. A downstream receptacle may work for months before someone presses test on the upstream GFCI and loses power to a freezer, sump pump, holiday lighting outlet, or garage door equipment. That is why we map what is downstream before choosing to use load terminals.
When to Use the Load Terminals and When to Leave Them Alone
You do not have to use the load terminals on a GFCI receptacle. In many cases, leaving them unused is the cleaner choice. If the goal is to protect only one receptacle location, connect the incoming line hot and line neutral to the line terminals and leave the load side capped by the factory label or unused per the device instructions.
Use the load terminals when you intentionally want one GFCI device to protect downstream outlets on the same circuit. This can save material cost, simplify a row of garage outlets, or allow one bathroom GFCI to protect another receptacle nearby. It also creates a single reset point, which may or may not be convenient.
