It is also one of the easiest drainage projects to install badly. On our job sites, the failed French drains we uncover usually have the same problems: no real outlet, poor slope, thin weed fabric instead of drainage fabric, dirty gravel, perforated pipe used where solid pipe was needed, or no cleanout access for maintenance.
If you are installing a DIY French drain, plan the system before you dig. A typical shallow yard drain may be 12 to 18 inches deep, 9 to 12 inches wide, and sloped about 1 inch every 8 to 10 feet. A simple 50-foot DIY yard drain commonly runs about $300 to $1,500 in materials before tool rentals. Professional installation in 2026 can range from about $500 to $18,000 or more, with shallow landscape drains at the low end and deep foundation, basement, concrete, or sump-related work at the high end.
This guide walks through the whole process: diagnosis, layout, permits, materials, slope, installation, common mistakes, and the point where hiring a drainage or foundation contractor is the better decision.
Crashes, No Sound, or Screen Glitches?
Random freezes, missing sound and display glitches usually trace back to one bad driver. Find and replace yours safely.Free scan · under a minuteWindows Errors? Fix Them Before They Spread
Repair common Windows errors and clear accumulated junk for a smoother, more stable PC - no reinstall needed.Free scan · no reinstallFirst, Make Sure a French Drain Is the Right Fix
Before buying pipe and gravel, watch the water during an actual rain. A French drain is not a magic trench. It solves specific water movement problems, and it fails when installed for the wrong symptom.
A French drain is usually a good fit when water is moving through the soil or collecting in a predictable low area. Examples include a wet strip along a driveway, a soggy lawn swale, groundwater moving toward a foundation, water trapped behind a low landscape area, or runoff that needs to be intercepted before it reaches a patio or walkway.
#1 Best Overall
- Pipe unfolds and expands from 2 to 25-feet
- Perforated pipe is for ground water drainage (French drains, dispersing water from flower beds)
- Exceeds all applicable ASTM Standards
- Compatible with most traditional 3-in. and 4-in. corrugated pipe and 4 in. PVC
- 30-Percent higher load-bearing rating than standard corrugated pipe
A French drain may not be the first fix when the real problem is roof water, bad grading, clogged gutters, short downspout extensions, cracked foundation walls, failed waterproofing, a leaking window well, or hydrostatic pressure under a basement slab. Those issues need to be diagnosed separately. Many wet-basement calls start with a drainage trench idea, but the lower-cost fix is often extending downspouts 6 to 10 feet from the foundation, correcting a negative grade, sealing a window well, or repairing gutter overflow.
Walk the property during moderate to heavy rain and mark where water starts, where it flows, where it ponds, and where it could safely go. Check the ground slope around the house. Soil should generally fall away from the foundation, not send water toward it. Inspect downspouts and roof valleys. A single roof downspout can discharge hundreds of gallons during a storm, so connecting roof water into a small perforated French drain without planning for that volume can overload the trench and wash sediment into the system.
What’s actually slowing this PC down?
Pick the symptom - the matching free tool is one click away.
Plan the Outlet Before You Plan the Trench
The outlet is the most important part of the French drain. Design from the discharge point backward. If you do not have a legal place for the water to go, the trench will only store water temporarily or move the problem somewhere else.
Common discharge options include daylighting to a lower area on your own property, a dry well, a rain garden, a sump basin, an approved storm connection, or another local-code-approved drainage point. The outlet should not dump water onto a neighbor’s property, across a public sidewalk, into a street or storm system without approval, near a well, into a septic field, or back toward your own foundation.
For a daylight outlet, choose a spot lower than the wet area and protect it with stone, a grate, and a rodent guard. Place the outlet where water can spread and soak in without eroding soil. For a dry well or rain garden, size matters. Clay soil drains slowly and may need a larger storage area or professional design. Sandy soil accepts water faster, but sediment control becomes more important because fine sand can clog the stone envelope.
Local stormwater rules vary. Some towns require approval before connecting to a storm sewer or discharging near a right-of-way. If the drain affects a foundation, footing, retaining wall, public drainage easement, or neighboring property, check with your local building department before digging.
Permits, 811, and Utility Safety
Call 811 before you dig. Do it a few business days before the planned work date. State wait periods vary, commonly 2 to 3 business days, and the markings typically cover public utility lines. They may not mark private lines such as irrigation, landscape lighting, detached garage feeds, gas grill lines, pool lines, sewer laterals, or low-voltage wiring installed by a previous owner.
French drain work often looks shallow, but a 12- to 18-inch trench can still hit cable, irrigation, electrical, gas, or communication lines. Hand dig carefully near marked utilities. If you are working close to the house, remember that older properties can have undocumented lines and drainage pipes running in unexpected paths.
Permit requirements depend on the location and scope. A shallow yard drain that discharges on your own property may not need a permit in many areas. A system tied to a storm sewer, sump pump, foundation drain, right-of-way, retaining wall, or engineered drainage plan may require approval. Permit fees vary locally; small drainage permits are often in the low hundreds of dollars, with some reported ranges around $58 to $225. Engineered foundation drainage can cost much more because plans, inspections, excavation, and waterproofing details become part of the job.
DIY French Drain Cost in 2026
For a simple DIY French drain, materials are usually the smaller part of the job. The real cost is excavation, hauling, access, stone delivery, disposal, restoration, and time. A 50-foot shallow yard drain can often be built for $300 to $1,500 in materials before rentals. Add more if you need catch basins, solid discharge pipe, premium rigid pipe, a dry well, pop-up emitter, sod replacement, gravel delivery, or disposal of excess soil.
Do these 3 things before closing this tab:
1Scan for outdated or missing drivers - takes under a minute2Clear out junk files and repair common Windows errors3Fix the driver behind crashes, sound loss and screen glitchesProfessional costs vary widely because the phrase French drain can mean anything from a 12-inch-deep yard trench to a footing-level foundation drain. In 2026, professional installation commonly falls between about $10 and $100 per linear foot, with total project ranges reported from roughly $500 to $18,000, and some complex projects reaching $27,000 depending on depth, location, concrete removal, pump work, and restoration.
| Project Type | Typical 2026 Cost Range | What Drives the Price |
|---|---|---|
| DIY 50-foot shallow yard drain | $300-$1,500 materials before rentals | Pipe type, fabric, gravel, fittings, catch basins, delivery, disposal, lawn repair |
| Professional shallow exterior yard drain | Often lower end of $10-$100 per linear foot | Machine access, trench length, soil, roots, landscaping, outlet design |
| Deep exterior foundation drain | High thousands to tens of thousands | Excavation depth, waterproofing, shoring, utilities, inspections, backfill, restoration |
| Interior basement drain or sump system | Often several thousand dollars or more | Concrete cutting, sump basin, pump, discharge piping, slab patching, vapor/moisture details |
| Drain under concrete, asphalt, or pavers | Higher than open lawn work | Demolition, base reconstruction, surface replacement, compaction, drainage tie-ins |
Tool rentals can change the math. A trenching machine may save days of labor on a long open run, but it is not always useful near utilities, tight side yards, tree roots, or established landscaping. Many homeowners still end up hand digging the careful areas and using rented equipment only where access is clean.
Materials and Specs That Make the Drain Work
A proper French drain is a system, not just a pipe in dirt. The basic assembly is non-woven geotextile fabric, clean drainage stone, perforated pipe, more stone, wrapped fabric, and a surface cover such as soil, sod, mulch, or decorative stone.
Pipe
Most residential French drains use 4-inch pipe. Budget landscape drains often use black corrugated perforated pipe. It is flexible and inexpensive, but it can sag, hold sediment in low spots, and be harder to clean. For critical runs, long runs, or areas where maintenance matters, rigid smooth-wall PVC or SDR pipe is usually the better product. It holds slope more consistently and can be cleaned more easily through a proper cleanout.
Use perforated pipe only where you want to collect water. Once the collected water needs to travel to the outlet, transition to solid pipe. A common failure is running perforated pipe all the way to the discharge point, which lets water leak out along the way and can keep the wet area wet.
Fabric
Use non-woven geotextile drainage fabric, not thin landscape weed fabric. The fabric wraps the stone envelope and keeps surrounding soil from migrating into the gravel. In clay, it prevents fine particles from sealing the stone. In sandy soil, it helps stop sand from washing in and clogging the pipe. The fabric should be wide enough to line the trench, wrap over the top of the stone, and overlap several inches.
Stone
Use clean, washed, angular drain rock or washed gravel. Do not use dirty gravel with fines, native clay soil, or pea gravel full of sediment inside the drainage zone. The voids between clean stones are what let water move. If those voids fill with silt, the French drain becomes a buried mud strip.
Fittings and Access
Use sweep fittings where the pipe changes direction. Avoid tight 90-degree turns when possible. Install cleanouts at the high end and at practical intervals on longer runs. A cleanout is cheap during installation and valuable later when roots, sediment, or leaves need to be flushed or cleared.
How Much Slope Does a French Drain Need?
A common residential rule is about 1% fall, which means 1 foot of drop over 100 feet, or roughly 1 inch every 8 to 10 feet. Some drainage specifications cite 0.5% as a minimum for certain pipe applications, but for a DIY yard drain, the target should be simple: continuous downhill pitch with no bellies.
A belly is a low spot in the pipe where water and sediment sit. One belly can ruin a drain even if the beginning and end elevations look correct. That is why we check slope before digging the full trench, after placing the gravel bed, and again after setting the pipe.
Use a laser level if you have access to one. A string line also works. Set stakes along the route, mark the starting elevation, then calculate the needed drop. For example, a 50-foot run at 1% needs about 6 inches of total fall. A 70-foot run needs about 8.4 inches. If your outlet is not low enough to provide that fall, stop and redesign. You may need a different outlet, a dry well, a sump system, or professional drainage design.
Step-by-Step: Installing a DIY French Drain
1. Mark the Route
After utilities are marked, lay out the drain with flags or marking paint. Start at the outlet and work backward to the wet area. Keep the route as straight as practical. If you need turns, use gradual bends or sweep fittings. Avoid running too close to large tree roots, utility markings, septic areas, wells, or foundation footings unless the design has been reviewed by a professional.
2. Confirm the Grade
Set stakes and measure your fall. Do not rely on eyesight. Many yards that look sloped are flatter than they appear, especially over 40 to 80 feet. Confirm that the outlet is lower than the start and that you can maintain a consistent pitch.
3. Dig the Trench
For a typical yard drain, dig about 12 to 18 inches deep and 9 to 12 inches wide. The exact depth depends on the water source. A shallow surface interception drain may work near the surface. A drain intended to collect subsurface water has to be low enough for that water to enter the stone envelope. Foundation or footing drains are much deeper and are not a beginner DIY project.
Keep the trench bottom smooth and sloped. Remove roots, clods, and loose soil that create high and low spots. Stockpile soil where it will not wash back into the trench if rain arrives before you finish.

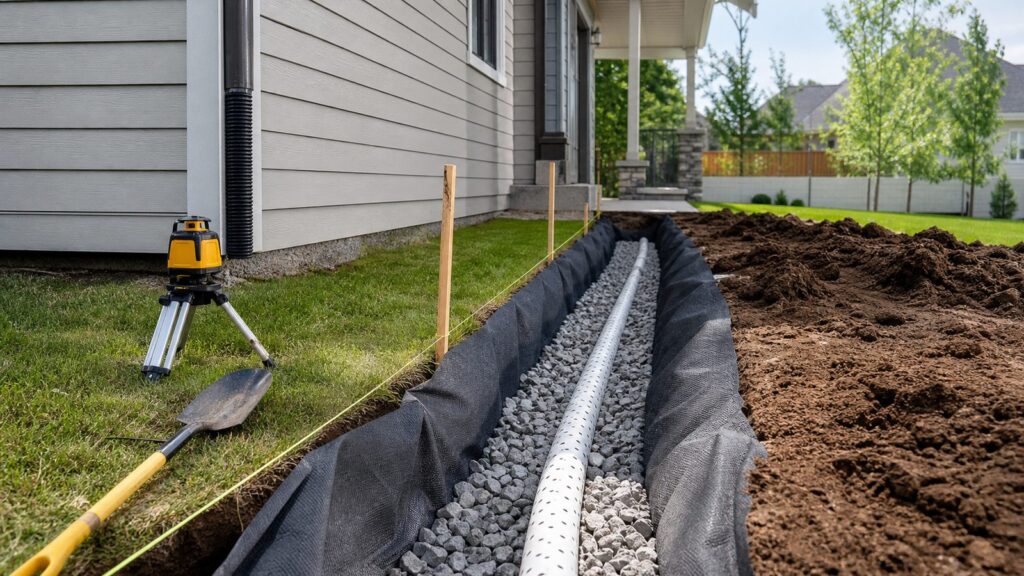

4. Line the Trench with Fabric
Place non-woven geotextile fabric into the trench with enough extra width to wrap over the finished stone. Do not poke holes in the fabric or leave gaps along the sides. Overlap fabric sections by at least several inches so soil cannot work through the seams.
Free tools Windows power users keep installed
One-click scans. No signup required.
5. Add the Gravel Bed
Place 2 to 3 inches of clean washed stone on the bottom of the trench. Shape it to your planned slope. Check grade again. This gravel bed supports the pipe and gives water a path below it.
6. Set the Pipe
Lay the perforated 4-inch pipe on the gravel bed through the collection zone. For rigid pipe, glue or gasket joints according to the product requirements. For corrugated pipe, keep the run smooth and avoid sags. Many perforated pipe products are designed with holes down so water rises into the pipe from the bottom of the stone trench, but follow the pipe manufacturer’s markings and instructions. The key is that the pipe is surrounded by clean stone and installed at a continuous downhill pitch.
At the end of the collection zone, transition to solid pipe for the discharge leg. This prevents collected water from leaking back into areas where you do not want it.
7. Add Cleanouts and Drainage Structures
Install a cleanout at the upper end of the pipe and at major direction changes or long runs. If the problem includes surface water collecting at a low point, a catch basin with a grate may be appropriate. Keep leaves, mulch, and sediment out of the system as much as possible, especially if roof runoff is involved.
8. Cover the Pipe with Stone
Add clean washed stone around and above the pipe. Many residential drains perform well with several inches of stone above the pipe, but the important detail is a continuous stone envelope around the pipe, not soil against the pipe.
9. Wrap the Fabric
Fold the fabric over the top of the stone with overlap. The fabric should wrap the stone, not the pipe alone. This is a major distinction. Wrapping only the pipe leaves the surrounding stone exposed to soil migration, which clogs the system from the outside in.
Rank #2
- TRANSITIONS BETWEEN PIPE TYPES: As part of a complete drainage system, the HDPE corrugated adapter connects two different pipe types to convey excess water for proper release downstream
- CONNECTS CORRUGATED PIPE TO SEWER & DRAIN PIPE: Connects 4 in. single-wall corrugated pipe to 4 in. sewer and drain (S&D) pipe or fitting in non-pressurized drainage and sewer piping systems
- CONNECTS DRAINAGE SYSTEM COMPONENTS: Use with the EZflow Gravel-Free French Drain System (EZ-1001F) to connect 4 in. corrugated pipe inside the bundle to 4 in. S&D pipe or fitting
- MADE OF DURABLE MATERIAL: Adapter made of high-density polyethylene (HDPE) treated with UV inhibitors to prevent fading and cracking
- SPECIFICATIONS: Works with single wall corrugated pipe and Sewer and Drain fittings; Not compatible with DWV Schedule 40 pipe and fittings per ASTM D 2665
10. Finish the Surface and Protect the Outlet
Backfill the top with soil and sod if you want the drain hidden, or finish with decorative stone if surface infiltration is desired. At the outlet, use stone protection, a grate, and a rodent guard. Make sure the outlet remains visible and serviceable. A buried outlet is hard to inspect and easy to clog.
Independent reader supportYour contribution helps us test, update, and keep practical guides available for everyone.Can You Connect a French Drain to Downspouts?
Sometimes, but do it carefully. Roof runoff is high-volume water that can carry leaves, grit, shingle granules, and organic debris. If you connect downspouts directly into a perforated French drain, you can overload the trench and introduce sediment that shortens the drain’s life.
Recommended Free Tools
A better approach is often to separate collection and conveyance. Use solid pipe to carry downspout water away from the house. Use a French drain to collect groundwater or yard water. If the two systems share an outlet, include cleanouts, leaf protection, and enough pipe capacity for heavy rain. Where local rules allow, a downspout line can discharge to daylight, a dry well, a rain garden, or another approved stormwater feature.
Before tying any roof water into a drainage system, clean the gutters, confirm the downspouts are not blocked, and extend short downspouts away from the foundation. That may solve part of the problem before you dig a larger drain.
Common DIY French Drain Mistakes
The biggest mistake is installing the drain before proving there is a legal outlet with enough fall. If the pipe cannot discharge, the trench becomes temporary storage. During long rain events, it fills and stops helping.
The second mistake is poor slope. A French drain does not need a steep drop, but it needs consistent pitch. Low spots hold water and sediment. Over time, that sediment blocks the pipe and stone.
The Tool Desk
Outbyte PC Repair FREERepair Windows errors before they cause bigger problemsFix Now →Outbyte Driver Updater FREEFix the driver behind crashes, sound loss and screen glitchesFind Drivers →Material shortcuts also cause failures. Thin landscape fabric can clog or tear. Dirty gravel brings fines into the system on day one. Native clay backfill against pipe reduces water movement. Perforated pipe in the discharge leg leaks water where it should be carrying it away. Tight turns make cleaning difficult. No cleanout means future maintenance may require excavation.
Another common mistake is treating a French drain as the cure for every basement moisture issue. If water is entering through wall cracks, window wells, slab joints, or failed waterproofing, a shallow yard drain may reduce load but not solve the source. If the problem is hydrostatic pressure at the footing or below the slab, the solution may involve a footing drain, interior drain tile, sump pump, waterproofing membrane, or structural repair.
When to DIY vs. When to Hire a Pro
A DIY French drain is reasonable when the drain is shallow, the route is clear, the outlet is legal, utilities are marked, the slope is measurable, and the problem is limited to yard or surface drainage. A homeowner with basic tools can often complete a 30- to 60-foot shallow yard drain over a weekend or two, depending on soil, weather, access, and restoration.
Hire a professional when the work is deep, close to the foundation footing, inside a basement, under concrete, near a retaining wall, tied to a sump pump, connected to a municipal storm system, or complicated by clay soil, high groundwater, erosion, or unclear discharge rules. Also bring in a drainage or foundation contractor if you see foundation cracks, repeated basement water, bowing walls, moldy finished space, failed footing drains, or water entering at the wall-floor joint.
Recommended Free Tools
The practical question is not whether you can dig a trench. It is whether you can design the system so it works, remains serviceable, and does not create a new legal or structural problem. Failed drains often have to be excavated completely, which can erase the labor savings from the original DIY attempt.
Maintenance After Installation
A French drain should not need constant attention, but it should not be forgotten. Inspect the outlet after heavy rain. Water should discharge freely and should not erode the area around the pipe. Keep the outlet grate clear of leaves, mulch, and debris.
Flush cleanouts periodically, especially if the drain accepts surface water or roof runoff. Watch for standing water returning in the original wet area, soil sinking over the trench, or water appearing near the discharge line before the outlet. Those signs can point to settlement, a crushed pipe, a clog, or an outlet blockage.
Landscape maintenance matters too. Do not pile mulch over catch basins. Do not let soil wash into grates. Keep heavy vehicles off shallow drain runs unless the pipe and cover were designed for that load. If the yard settles over the trench during the first season, add topsoil and reseed without blocking surface flow.
The Tool Desk
Outbyte Driver Updater FREEScan for outdated or missing drivers - takes under a minuteDriver Scan →Outbyte PC Repair FREERepair Windows errors before they cause bigger problemsFix Now →Bottom Line
A DIY French drain can be a strong, durable fix for yard drainage when it is planned correctly. The winning formula is simple: diagnose the water source, choose a legal outlet, measure the slope, use proper drainage fabric and clean stone, place perforated pipe only in the collection zone, use solid pipe for discharge, and build in cleanout access.
For a shallow yard drain, expect a realistic DIY material budget of about $300 to $1,500 for a 50-foot run before rentals. Professional work costs more because excavation, access, soil, restoration, permitting, and risk drive the price. When the drain touches the foundation, basement, footing, retaining wall, municipal storm system, or pump system, treat it as professional drainage work, not a weekend landscaping project.
Frequently Asked Questions
How deep should a DIY French drain be?
A typical shallow residential yard French drain is often about 12 to 18 inches deep and 9 to 12 inches wide. Foundation or footing drains are much deeper and usually should be handled by a qualified drainage or foundation contractor.
What slope does a French drain need?
A common target is about 1% fall, or roughly 1 inch every 8 to 10 feet. The most important requirement is continuous downhill pitch with no low spots that hold water and sediment.
Crashes, No Sound, or Screen Glitches?
Random freezes, missing sound and display glitches usually trace back to one bad driver. Find and replace yours safely.Free scan · under a minuteWindows Errors? Fix Them Before They Spread
Repair common Windows errors and clear accumulated junk for a smoother, more stable PC - no reinstall needed.Free scan · no reinstallDo I need a permit to install a French drain?
It depends on local rules and where the water discharges. Shallow yard drains may not need a permit in some areas, but storm sewer connections, right-of-way discharge, foundation drains, sump systems, and engineered drainage work often require approval.
Should French drain pipe holes face up or down?
Many perforated drain pipes are installed with holes down so water can rise into the pipe from the bottom of the gravel trench, but follow the pipe manufacturer’s instructions. Proper stone, fabric, and slope matter more than the common up-or-down debate.
Can I connect a French drain to my downspouts?
Sometimes, if local rules allow it and the system is sized for roof-water volume. In many cases, it is better to carry downspout water through solid pipe and use the French drain separately to collect groundwater or yard water.
When should I hire a professional instead of installing a French drain myself?
Hire a pro for deep drains, foundation or basement water, footing drains, sump pump tie-ins, work under concrete, retaining wall drainage, unclear discharge rules, high groundwater, or any condition involving structural movement or repeated basement flooding.
