For most residential swing sets, anchoring is a one-day project. A typical four-leg A-frame needs four anchors. In 2026, a DIY anchor-only job usually costs about $25 to $150 for anchors, fasteners, washers, and concrete if needed. Professional swing-set assembly and installation commonly runs about $269 to $575 nationally, with larger wooden playsets, leveling, concrete footings, drainage work, or surfacing pushing complex jobs above $1,500.
On our job sites, we treat anchoring as part of the whole installation, not a small hardware detail. A good anchor in bad soil, poor drainage, rotten wood, or the wrong fall zone gives a false sense of security. The goal is a swing set that stays put, drains properly, and gives a child room to fall onto protective surfacing instead of hard ground, concrete, fencing, or landscaping.
Start With the Right Location
Before you buy anchors or open a bag of concrete, confirm that the swing set belongs where you plan to put it. The best site is level, firm, well-drained soil with room around the equipment. Avoid low spots where water stands after rain, fresh fill that has not compacted, loose sand, steep slopes, septic areas, underground utilities, and tree roots that will interfere with anchors.
Do these 3 things before closing this tab:
1Scan for outdated or missing drivers - takes under a minute2Repair Windows errors before they cause bigger problems3Fix the driver behind crashes, sound loss and screen glitches#1 Best Overall
- Fully Welded 2" Wide Spiral Blade: Different from other common ground anchors, our trampoline anchors spiral blade is fully welded, which is more durable. The earth anchor suitable for many kinds of soil, hard clay, Sandy soil, grass, sand, snow.
- Versatile L-shaped Bracket: The earth anchor's L-bracket offers 4 installation methods: wooden structure, horizontal, vertical, There is a hole on the top of the L-bracket for strap fixation, adding flexibility.
- Made of Heavy Duty Solid Steel: The mobile home anchors made of high-strength carbon steel, high hardness, good wear resistance, with premium anti-rus coating for long service time.
- Easy to install: The swingset anchors set includes 4 x ground stakes anchor, 1 x 0.5inch electric drill sleeve, 4 x L-shaped brackets and 8 x screws. Mount the electric drill sleeve onto the drill rig and can start using. Used with a drill rig, it can be installed faster and more labor-saving.
- Multi-purpose: The shed anchors kit can help you fix swings, sheds, campers, camping tents, trampolines, carport, soccer frame, fence, inflatable castles, fix boats, trees, and can also be used as a dog anchor. Used in conjunction with strap, it can prevent tents or sheds from being blown away by the wind.
Use-zone clearance matters as much as anchoring. CPSC home playground guidance recommends at least 6 feet of protective surfacing around play equipment. For swings, the protective surfacing should extend in front of and behind the swings to twice the height of the suspending bar. If the top swing beam is 8 feet high, plan for about 16 feet of fall-zone surfacing in front and 16 feet behind the swing path. That is often the detail homeowners underestimate.
Keep the set away from fences, sheds, retaining walls, grills, fire pits, pools, overhead branches, clotheslines, and hardscape edges. As a practical field rule, we like to see the required fall zone clear in every direction before we even discuss final anchor locations. If the only available location puts the swing path over a patio, driveway, or concrete slab, move the set. Anchoring will not make a hard fall surface safe.
Know What Type of Swing Set You Are Anchoring
Most backyard sets fall into two categories: light metal A-frame sets and heavier wood playsets with towers, ladders, slides, climbing walls, and swing beams. Both need anchoring, but they behave differently.
A metal A-frame set is usually lighter, so it can lift or hop at the legs when children swing hard. The frame may use narrow tube legs and small anchor brackets. A wood playset is heavier, but the swing beam creates strong leverage. Large wood sets may need anchors at the swing legs, tower posts, ladder sections, climbing wall supports, or any other manufacturer-designated anchor point.
Always read the manufacturer’s instructions first. CPSC guidance says play equipment may need anchors to keep it from tipping during use and advises following the manufacturer’s anchoring instructions. ASTM F1148 is the main residential home playground equipment safety specification, so when buying new equipment, look for residential playsets labeled to meet ASTM F1148. Public or commercial playgrounds use different standards, including ASTM F1487 and public playground guidance.
If the playset is older and the instructions are missing, do not guess based only on appearance. Identify the brand and model if possible, then look for the manual. If you cannot find it, anchor every structural leg and any section that can lift, rack, or shift under use. For a common four-leg A-frame, that usually means four anchors. For a larger wood playset, six to twelve anchor points is not unusual.
Choose Anchors Based on Soil, Not Just the Kit
The anchor that works well in dense clay may perform poorly in loose sand or wet fill. We choose anchors by asking one question first: what is the ground actually holding?
Twist-In or Auger Anchors
Twist-in anchors are common for backyard swing sets because they are affordable, easy to install, and removable. They look like large corkscrews or earth screws and are typically driven into the soil near each leg, then connected with a bracket, strap, chain, or manufacturer hardware.
What’s actually slowing this PC down?
Pick the symptom - the matching free tool is one click away.
They work best in firm grass, compact soil, and clay that grips the spiral. For residential sets, common lengths range from about 12 to 18 inches, with heavier-duty kits using thicker steel and longer augers. In 2026, basic ground-anchor kits commonly cost about $14 to $75 for a two-pack or four-pack. Examples include basic ground stakes around $14 per pair, four-anchor playset kits around $39, and heavier 18-inch screw-in four-packs around $74 before promotions.
Auger anchors are a good choice when the soil is firm and the set is not oversized. They are not our first choice in loose sand, saturated ground, mulch beds, soft landscaping, or uncompacted fill.
Drive-In Stakes
Drive-in stakes are simpler steel stakes that are hammered into the ground and attached to the frame. They are fast and inexpensive, but they usually have less holding power than a proper screw-in anchor. We reserve them for lighter-duty situations where the manufacturer specifically allows them and the soil is firm enough to resist pullout.
If a stake wiggles by hand after installation, it is not doing useful work. Replace it with a longer auger anchor, improve the soil, relocate the playset, or move to a concrete-set solution.
Free tools Windows power users keep installed
One-click scans. No signup required.
Concrete-set anchors
Concrete is the high-stability option. Use it for loose soil, large wooden sets, heavy use, windy sites, or installations where the manufacturer calls for concrete footings. A typical concrete anchor installation uses a post-hole digger or auger to create a hole near each anchor point, then sets approved hardware into concrete below grade.
Concrete is inexpensive but permanent. In 2026, bagged concrete commonly runs about $5 to $8 per bag for 50- to 60-pound bags. A four-anchor job may use four to eight bags depending on hole diameter, depth, soil conditions, and anchor style, putting concrete alone around $20 to $65 before tools and tax.
Do not bury wood feet directly in concrete unless the manufacturer specifically designs the playset that way. For wood playsets, we want the connection secure while keeping wood out of standing water. Trapping untreated or vulnerable wood at grade can accelerate rot.
Anchor Cost Comparison for 2026
The cheapest anchor is not always the cheapest finished job. If the frame keeps moving, hardware bends, or soil fails after a storm, you will be doing the work twice. The table below gives realistic 2026 US cost ranges for common anchoring paths.
The Tool Desk
Outbyte PC Repair FREEClear out junk files and repair common Windows errorsFree Scan →Outbyte Driver Updater FREEFix the driver behind crashes, sound loss and screen glitchesFind Drivers →Rank #2
- Safe and Stable Anchoring System: The ground anchors provide stability and safety from tipping or blowing over in high winds for children's outdoor play products at home including swing sets and trampolines
- Complete Ground Anchor Kit: Includes 4 heavy duty spiral steel 12.75 inch x 1/4 inch diameter auger anchors with simple assembly instructions and all necessary hardware
- Multi-Purpose Outdoor Use: Multiple attachment holes allow anchors to secure a variety of swing sets, play sets, outdoor furniture and decor, and garden accessories like trellis' and arbors
- Wide Compatibility: Compatible with all XDP Recreation swing sets and other 2-inch diameter tubing competitive models
- Durable Construction: Made from heavy duty spiral steel material designed to withstand outdoor conditions and provide long-lasting secure anchoring
| Option | Best For | Typical 2026 Cost | Notes |
|---|---|---|---|
| Basic drive-in stakes | Light sets in firm soil when allowed by manufacturer | $14-$40 | Fast, inexpensive, lower holding power than auger anchors. |
| Twist-in ground anchor kit | Most small to mid-size residential sets in compact soil | $25-$100 | Common 2-pack and 4-pack kits; one anchor per leg or required point. |
| Heavy-duty 18-inch auger anchors | Firm soil, larger frames, more uplift resistance | $60-$150 | Often includes straps, brackets, or drill adapters; still depends on soil grip. |
| Concrete-set anchors | Loose soil, heavy wood sets, high-use yards, windy sites | $75-$250 DIY | Includes anchors, exterior-rated fasteners, washers, and roughly 4-8 bags of concrete. |
| Professional installation | Large playsets, slope, drainage, concrete, or uncertain soil | $269-$575 typical | Complex custom builds, leveling, surfacing, or removals can exceed $1,500. |
Surfacing can cost more than anchoring, but it should not be skipped. Playground surfacing can range widely, from roughly $15 to $160 per cubic yard for common materials, while poured rubber can be around $225 per cubic yard. If the budget is tight, prioritize a correctly anchored set with a proper fall zone over cosmetic upgrades.
Tools and Materials You May Need
For a typical anchor installation, plan on a tape measure, level, framing square or diagonal measurements, shovel or hand trowel, post-hole digger if using concrete, adjustable wrench or socket set, drill or impact driver, exterior-rated bits, mallet, and safety glasses. For screw-in anchors, a steel rod, T-handle, or drill adapter may be included with the kit.
Use exterior-rated hardware. Galvanized or coated fasteners are standard for outdoor playsets. Where the manufacturer allows through-bolting, use bolts with washers and lock nuts rather than relying on short screws into questionable lumber. This matters on older wood sets. A lag screw into soft, split, or decayed wood may feel tight for a moment but fail under repeated movement.
Before anchoring, inspect the bottom of each wood leg or post. Probe suspicious areas with an awl or screwdriver. If the wood is soft, punky, cracked through, or separating at fastener holes, repair or replace the member before anchoring. Anchoring into decayed lumber is not a repair; it is a hidden failure point.

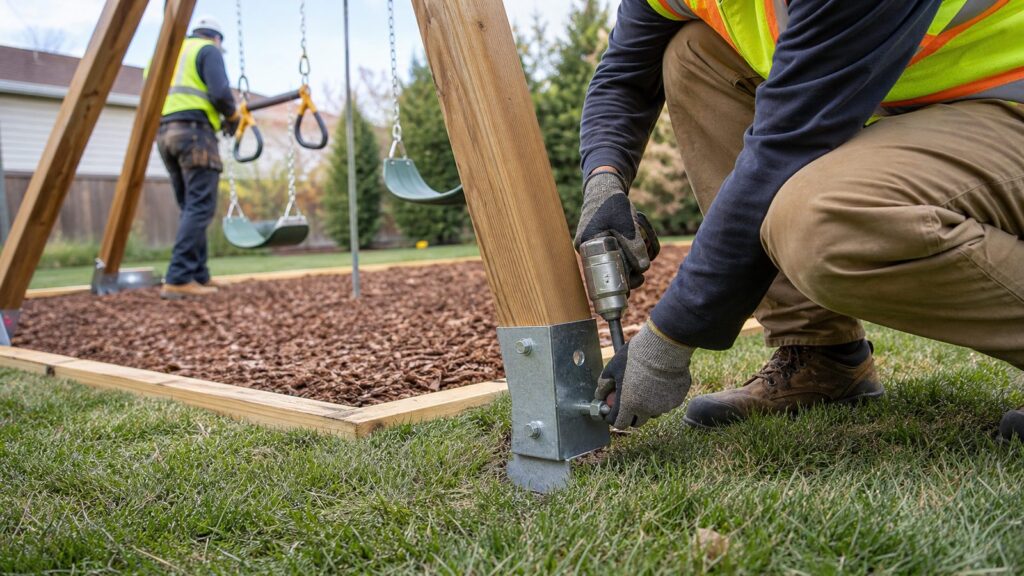

Step-by-Step: How to Anchor a Backyard Swing Set
1. Assemble, Square, and Level the Frame First
Do not anchor the set before it is assembled and squared. On our installations, we build the frame, place it in the final location, level the legs, and check that the structure is not twisted. Anchoring too early can lock the frame into a stressed position, which makes the swing beam, brackets, and fasteners work against each other.
Check level across the swing beam and tower deck if there is one. Measure diagonally between opposing legs or corners where practical. If the legs are not sitting evenly, correct the grade. Do not use loose mulch as structural fill under a leg. Use compacted soil or a manufacturer-approved base detail.
2. Mark Every Anchor Point
Mark the exact location beside each leg or manufacturer-designated anchor point. Anchors should sit inside or tight to the legs whenever possible so they resist uplift without becoming a trip hazard. Keep them out of the play path and below grade where the hardware allows.
For a four-leg A-frame, expect four anchor points. Larger playsets may need anchors at the swing beam supports, tower corners, ladder feet, climbing wall supports, or accessory frames. Follow the manual’s pattern. If the manual calls for six anchors, four is not enough.
3. Install the Anchors to Full Depth
For twist-in anchors, drive each anchor vertically or at the manufacturer’s required angle until the eye, bracket, or connection point is at the correct height. Many anchors should finish at or slightly below grade with only the connection hardware exposed. If you hit a rock or root, do not leave the anchor half-installed. Move the anchor only if the bracket still aligns correctly and the manufacturer allows it; otherwise, relocate the set or excavate properly.
For concrete-set anchors, dig clean holes of consistent size. Many residential anchor footings are in the range of 8 to 12 inches in diameter and 18 to 24 inches deep, but the correct size depends on the playset, soil, frost considerations, and manufacturer instructions. In cold climates, shallow concrete can move with freeze-thaw cycles. For large or permanent installations, local footing depth and frost conditions deserve a contractor’s eye.
4. Connect the Frame With Approved Hardware
Attach the anchor to the leg using the manufacturer’s bracket, strap, chain, lag screw, or through-bolt detail. Keep the connection snug without crushing wood fibers or deforming metal tubing. Use washers under bolt heads and nuts where required.
Do not improvise with indoor screws, light-duty wire, bungee cords, rope, or thin plumber’s strap. Swing sets create repeated dynamic loads. A connection that looks acceptable while the set is still may loosen quickly once children start swinging.
Recommended Free Tools
5. Backfill, Cover, and Remove Hazards
After the anchors are connected, backfill around them and tamp the soil. The finished condition should not leave sharp edges, raised hooks, exposed stakes, or snag points in the use zone. Anchors should not create tripping, impalement, or clothing-entanglement hazards.
If using concrete, allow the concrete to cure according to the bag and manufacturer instructions before heavy use. Fast-setting concrete may harden quickly, but full strength takes longer. As a practical rule, keep children off the set until the concrete has set firmly and the frame passes a movement check.
6. Perform a Movement Check
Push and pull the frame from several directions. Watch the legs, anchors, fasteners, and soil. You are looking for leg lift, rocking, sliding, fastener slip, soil cracking around the anchor, or the frame twisting under load. A small amount of flex in a long wood beam can be normal; a leg lifting off the ground is not.
After the first few uses, repeat the check. New installations often settle slightly. Retighten hardware as allowed by the manufacturer and replace any bent, corroded, or slipping parts.
Rank #3
- 【18-Inch Length and 2.76-Inch Wide Blades】The long shaft allows deeper embedment, while the wide spiral blades create more soil contact to help resist shifting and lifting. Heavy-duty metal construction supports outdoor use; actual holding strength depends on soil and installation.
- 【Install by Drill or T-Wrench】Use the included power nut driver with a compatible drill for faster installation, or use the upgraded T-handle wrench for manual control. Check for buried utilities and avoid forcing the anchor through rocks, roots, or other obstructions.
- 【Complete 4-Pack with Tie-Down Straps】Includes four screw-in anchors, four straps, one drill adapter, and one T-wrench, providing the main components needed to secure outdoor equipment without sourcing separate installation tools.
- 【For Trampolines, Swing Sets and Sheds】Use as trampoline or swing set anchors, a shed anchor kit, or earth anchors for gazebos, canopies, carports, garden structures, and other outdoor equipment. Follow the structure manufacturer’s required anchor count and placement.
- 【Match Installation to Soil Conditions】Install until the spiral blades are fully embedded and the eye remains accessible for the strap. Grip can vary in loose, waterlogged, rocky, or highly compacted soil; inspect strap tension and anchor position regularly and after severe weather.
Can You Anchor a Swing Set Without Concrete?
Yes, many backyard swing sets can be anchored without concrete if the soil is firm and the manufacturer allows earth anchors. A properly installed twist-in anchor in compact clay or firm turf can perform well for a light to mid-size residential set.
Concrete becomes the better answer when the ground does not hold. Loose sand, saturated soil, soft fill, recent landscaping, and steep grades are warning signs. If you can pull an anchor loose with moderate hand force, the children will do worse through repeated swinging. Longer anchors may help, but sometimes the right fix is relocation, drainage correction, compacted structural fill, or concrete-set hardware.
Concrete also makes sense for large wooden playsets with high swing beams, multiple children using the set daily, or yards exposed to strong wind. The tradeoff is permanence. Concrete footings can complicate future relocation, removal, HOA review, or property-sale questions. Document the final anchor type, depth, and hardware sizes so future maintenance is not guesswork.
Safety Rules That Matter Most
Anchoring is only one part of backyard playset safety. The biggest safety misses we see are poor surfacing, bad clearance, and deteriorated wood at the feet.
Crashes, No Sound, or Screen Glitches?
Random freezes, missing sound and display glitches usually trace back to one bad driver. Find and replace yours safely.Free scan · under a minutePC Slower Than It Used to Be?
A free scan shows the junk files, broken settings and background clutter dragging Windows down - then fixes them in one click.Free scan · Windows 10 & 11Do not install a swing set over bare concrete, asphalt, pavers, or a patio inside the fall zone. Even if the legs are perfectly anchored, a hard surface creates a severe fall hazard. Use protective surfacing throughout the use zone. Common residential options include engineered wood fiber, rubber mulch, loose-fill rubber, sand, pea gravel, or poured rubber, with depth and maintenance matched to the material and fall height.
Keep anchors below grade or shielded where possible. Place them tight to the legs, not out where children run. Cut no corners with protruding metal, open hooks, or loose straps. Any hardware that can catch clothing, skin, shoelaces, or a jump rope should be corrected.
For wood sets, manage water. Slightly crown the grade so water moves away from the feet, or correct drainage before final anchoring. Wood that sits in wet mulch or standing water will deteriorate faster, and once the lower leg is soft, the anchor connection is no longer dependable.
Independent reader supportYour contribution helps us test, update, and keep practical guides available for everyone.Permits, HOA Rules, and Property Lines
Many backyard swing sets do not require a building permit, but local rules vary. Some cities exempt small residential playground equipment, while others may regulate height, setbacks, lot coverage, accessory structures, visibility, easements, or permanent concrete work. HOA rules can be stricter than city rules, especially for height, color, visibility from the street, placement near fences, and approval before installation.
Check before you pour concrete or build a large playset. The practical questions are simple: How tall is the set? How close is it to the property line? Is it permanent? Is it visible above the fence? Are there easements or drainage areas in that part of the yard? Are you adding concrete footings or a large tower structure?
If you live in a managed community, submit the manufacturer’s drawing, dimensions, location on a simple site plan, color or finish, and anchor method. That small paperwork step can prevent a costly relocation later.
When to DIY and When to Hire a Pro
Anchoring a small swing set is a reasonable DIY project when the site is level, the soil is firm, the manufacturer’s instructions are clear, and you are comfortable drilling, bolting, and checking the frame for movement. A homeowner with basic tools can often complete an anchor-only installation in two to six hours.
Hire a pro when the set is large, the yard slopes, the soil is sandy or wet, concrete footings are needed, the playset includes a tower or multiple accessories, or the existing wood shows rot. Also bring in help if the fall zone needs grading, drainage, or surfacing. For high-use or large wooden sets, it is more efficient to have a contractor assess level, drainage, footing depth, soil condition, and surfacing in one visit instead of treating anchoring as a separate task.
Professional swing-set installation averages about $269 to $575 for many standard residential jobs in 2026. National home-service cost ranges commonly place the average around $505, with typical projects around $323 to $717. Simple jobs may start near $150, while large custom wooden structures, site prep, removal of an old set, surfacing, and concrete work can exceed $1,500.
Inspection and Maintenance Schedule
Check the anchors after the first few uses, then again after heavy rain, freeze-thaw cycles, high winds, or any event that changes the soil. After that, inspect seasonally at minimum. If the frame rocks, twists, squeaks unusually, or a leg lifts, inspect immediately.
Rank #4
- Constructed of heavy-duty steel for added stability for your swing set; 12-inch metal anchors
- Helps secure product to the ground and prevent tipping over
- Includes 5 anchors and all accessories to secure the product
- Easy installation with a 3-step process
- Compatible with soft or hard ground
During inspection, look for loose nuts, enlarged holes in wood, split members, corrosion, bent straps, lifted anchors, soil cracking, standing water, and mulch piled against wood feet. Tighten hardware according to the manufacturer’s instructions. Replace rusted or bent components rather than trying to bend them back. If an anchor repeatedly loosens, the soil or anchor type is wrong.
Keep a simple record of the anchor type, installation date, approximate depth, hardware sizes, and any concrete locations. That is useful for maintenance, future repairs, and home-sale questions.
What’s actually slowing this PC down?
Pick the symptom - the matching free tool is one click away.
Common Mistakes to Avoid
The most common mistake is assuming one generic anchor kit works for every set and every yard. It does not. Soil, frame weight, swing-beam height, drainage, and manufacturer requirements all matter.
Another mistake is anchoring before the frame is level and square. That locks twist into the structure and can create unnecessary stress at brackets and beam connections. We also see anchors installed too far from the legs, which creates trip hazards and poor load paths. Keep the connection tight to the structure.
Do not rely on shallow stakes in soft ground. Do not attach anchors to rotten wood. Do not install over concrete or asphalt inside the fall zone. Do not skip the second inspection after the first few uses. Most small problems are easy to fix early and expensive or unsafe after repeated movement.
The Bottom Line
A properly anchored swing set starts with the site, not the hardware aisle. Level the frame, confirm the fall zone, choose anchors that match the soil, connect every required point with exterior-rated hardware, and inspect after use and weather changes.
Do these 3 things before closing this tab:
1Fix the driver behind crashes, sound loss and screen glitches2Repair Windows errors before they cause bigger problems3Scan for outdated or missing drivers - takes under a minuteFor a standard four-leg backyard set in firm soil, expect a DIY cost of about $25 to $150 and a few hours of work. For large wood playsets, poor soil, slope, concrete footings, drainage corrections, or surfacing, hiring a pro is usually the better value. The best installation is the one that stays stable in real use, sheds water, avoids trip hazards, and gives children a proper protected area around the swings.
Frequently Asked Questions
Do backyard swing sets need to be anchored?
Yes, most backyard swing sets should be anchored to prevent tipping, leg lift, rocking, or shifting during use. Follow the manufacturer’s anchoring instructions and anchor every required leg or connection point.
Can you anchor a swing set without concrete?
Yes. Twist-in or auger-style earth anchors often work well in firm grass, compact soil, or clay. Loose sand, wet soil, soft fill, large wooden sets, and windy sites may need longer anchors, site correction, or concrete-set hardware.
How much does it cost to anchor a swing set in 2026?
A DIY anchor-only project commonly costs about $25 to $150 for anchors, fasteners, washers, and concrete if used. Professional swing-set installation often runs about $269 to $575, with complex builds exceeding $1,500.
How far should a swing set be from fences and other objects?
Provide at least 6 feet of protective surfacing around play equipment. For swings, extend surfacing in front and back to twice the height of the suspending bar. Keep the swing path clear of fences, trees, sheds, patios, and hardscape.
Is it safe to put a swing set on concrete or a patio?
No, not within the fall zone. Concrete, asphalt, pavers, and patios are severe fall hazards unless they are outside the use zone or covered by compliant impact-attenuating playground surfacing.
How often should swing set anchors be inspected?
Inspect anchors after the first few uses, after heavy rain or freeze-thaw cycles, seasonally, and any time the frame rocks, shifts, or a leg lifts. Retighten hardware and replace corroded, bent, or loose components.
