For a standard U.S. electric tank water heater, the right ohm reading depends on the element’s voltage and wattage. Most residential 240-volt elements should read roughly 10 to 19 ohms. The common 4500-watt element should read about 12.8 ohms, often rounded to 13 ohms. A 5500-watt element should read about 10.5 ohms.
That said, the number is not based on tank size. A 40-gallon and a 50-gallon water heater can use the same element. The correct resistance comes from the element rating stamped on the element or printed on the water heater nameplate.
On our job sites, we treat an ohm test as a diagnostic step, not a guess. A normal terminal-to-terminal reading tells you the element coil is probably intact. A reading near zero points to a short. An OL, open, or infinite reading usually means the element is burned out. You also need a separate ground test from each terminal to the metal tank or element flange. If the element has continuity to ground, it is unsafe and should be replaced.
Water Heater Element Ohm Chart
Use this chart for common electric water heater elements in U.S. homes. These are calculated values using Ohm’s law, so a small difference on your meter is usually acceptable.
Quick wins for a faster PC:
Clear out junk files and repair common Windows errorsFree Scan →Scan for outdated or missing drivers - takes under a minuteDriver Scan →#1 Best Overall
- Additional Tips - The following incorrect operations may cause the multimeter not to show results: Firstly, the plugs of test leads are not fully inserted or not inserted into the correct sockets. Secondly, the manual rotary switch is not placed in the correct position. In addition, this meter can not test all AC Current and below 100mV AC Voltage. Please check the user manual carefully before measurement.
- Versatile Digital Multimeter - Accurately measures AC/DC Voltage, DC Current, Resistance, and Diode. This Multimeter is a really useful tool for solving industrial and household electrical issues. Suitable for Household Outlets, Fuses, Batteries (including Vehicles), Automotive Circuit Troubleshooting, Charging Systems, Testing electronics in Cars etc.
- Troubleshooting with Accuracy - This Multimeter has a sampling speed of 2 times per second; Built-in a backlight LCD display with 3 ½ digits (1999 count) 0.6”, and high polarity including negative and positive readings.
- Ensures Safety - Double fuse is anti-burn and protects from overloading. The silicone cover can protect the multimeter from failing damage and prevent electric shocks. And low battery indication will be displayed when battery power is low.
- Ease of Use - Support Data Hold and Continuity Buzzer. Includes Convenient feature like LCD Backlit Screen makes it easy to use in dimly light areas. Batteries/Set of Test Leads/User Manual are Included.
| Element rating | Voltage | Expected resistance | Common use |
|---|---|---|---|
| 5500 watts | 240 volts | 10.5 ohms | Higher-output residential tanks |
| 4500 watts | 240 volts | 12.8 ohms | Very common residential tanks |
| 3800 watts | 240 volts | 15.2 ohms | Some lower-output residential tanks |
| 3500 watts | 240 volts | 16.5 ohms | Older or lower-demand tanks |
| 3000 watts | 240 volts | 19.2 ohms | Lower-wattage tanks and some specialty units |
| 1500 watts | 120 volts | 9.6 ohms | Point-of-use water heaters |
The formula is simple:
Resistance = volts squared ÷ watts
For a 4500-watt, 240-volt element: 240 × 240 = 57,600. Divide that by 4500 and you get 12.8 ohms.
For a 5500-watt, 240-volt element: 57,600 ÷ 5500 = 10.47 ohms, which rounds to 10.5 ohms.
If your water heater uses an oddball element, do not force it into a generic range. Read the element stamp or the tank nameplate, then calculate the expected resistance.
What Counts as a Bad Water Heater Element Reading?
A good element usually lands close to the calculated resistance. It does not have to be perfect. Meter accuracy, element temperature, manufacturing tolerance, mineral scale, and test lead resistance can all move the number slightly.
Do these 3 things before closing this tab:
1Fix the driver behind crashes, sound loss and screen glitches2Repair Windows errors before they cause bigger problems3Scan for outdated or missing drivers - takes under a minuteThese are the readings we pay attention to in the field:
- Normal reading: Close to the calculated value, such as 12 to 14 ohms for a 4500-watt, 240-volt element.
- Near 0 ohms: Usually indicates a shorted element.
- OL, open, or infinite resistance: Usually means the element coil is broken or burned out.
- Continuity from terminal to tank: Indicates a grounded element and the element should be replaced.
- Correct ohms but no heat: Look beyond the element. The issue may be voltage, thermostat, reset switch, wiring, or sequencing.
Before trusting a low-ohm reading, touch your meter probes together. Some meters show 0.2 to 0.8 ohms just from the leads. Subtract that from your element reading. For example, if the probes read 0.4 ohms together and the element reads 13.2 ohms, the corrected reading is about 12.8 ohms.
How to Test a Water Heater Element Safely
Electric water heaters are usually supplied by a 240-volt circuit. That voltage can injure or kill you. The resistance test itself is done with the power off, but you still need to verify the circuit is dead before touching wires.
Use a digital multimeter with AC voltage, ohms, and continuity functions. A non-contact voltage tester is useful as a quick screen, but we do not rely on it alone before touching terminals.
Rank #2
- VERSATILE FUNCTIONALITY: Measures AC/DC voltage up to 600V, 10A DC current, 2MΩ resistance; additional features include continuity, diode test and battery test
- LEAD-ALERT PROTECTION: LEDs on the meter illuminate to indicate proper test lead placement, enhancing accuracy and safety during measurements
- BACKLIT DISPLAY: LCD shows clear readings in low-light conditions for enhanced visibility
- BATTERY TEST: Battery test mode can be used for checking if batteries are working
- CONVENIENT FEATURES: Test lead holders on the back of the meter, kickstand and optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation
1. Turn Off the Breaker
Turn off the double-pole breaker serving the water heater. Most residential electric tank water heaters use a 30-amp, 240-volt circuit for 4500-watt elements, but do not assume the breaker label is correct. Mislabeled panels are common enough that verification is part of the work.
2. Remove the Access Cover
Remove the upper or lower metal access cover, fold back the insulation, and expose the thermostat and element terminals. Do not damage the insulation. You will need to put it back in place when you are done because it helps the thermostat read tank temperature correctly.
3. Verify Power Is Off
Set the multimeter to AC volts. Check across the two hot wires feeding the water heater and across relevant terminals in the access compartment. You should read 0 volts before proceeding. If you see voltage, stop and find the correct disconnect or breaker.
4. Disconnect One Wire from the Element
Remove at least one wire from the element terminal before testing resistance. If both wires stay connected, your meter may read through thermostats, wiring, or another component and give you a misleading number.

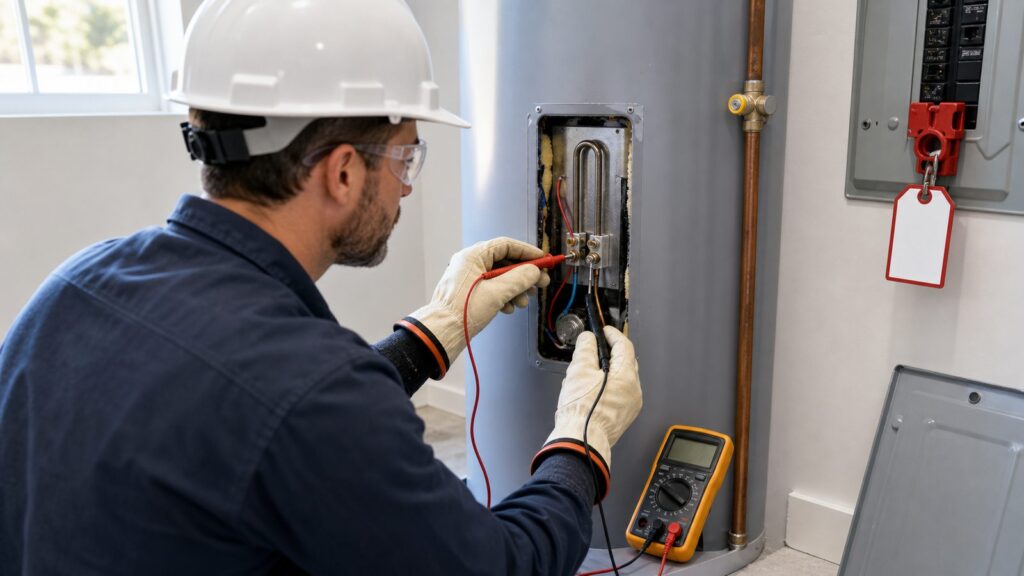

5. Measure Terminal-to-Terminal Resistance
Set the meter to ohms. Touch one probe to each screw terminal on the element. Compare the reading to the calculated value or the chart above. A 4500-watt, 240-volt element should be about 12.8 ohms. A 5500-watt, 240-volt element should be about 10.5 ohms.
6. Test Each Terminal to Ground
Leave one probe on an element screw terminal and touch the other probe to the metal tank, element flange, or a clean grounded metal surface. Repeat for the other terminal. You should not have continuity to ground. Any clear continuity between an element terminal and the tank usually means the element is grounded and should be replaced.
Why a Good Ohm Reading Does Not Always Mean Hot Water
A resistance test checks whether the element coil is intact. It does not prove the element is heating under load. We see this often on service calls where the element reads correctly but the homeowner still has lukewarm water or no hot water.
Once the element checks out, the next diagnostic path is electrical and control related:
Rank #3
- Versatile Digital Multimeter - Accurately measures AC/DC Current, AC/DC Voltage, Capacitance, Frequency, Duty Cycle, Resistance, Diode, Continuity and Temperature.
- Thoughtful Design - Support Data Hold, Large LCD Backlit Screen, Auto Shut-off and Kickstand make the process of measurements easier. Professional level is reflected in some features include Auto-Ranging capability, and True RMS for measuring both AC Current and Voltage.
- Suitable For Many Occasions - This Multimeter is a golden partner to help to troubleshoot a variety of automotive and household electrical problems safely and accurately.
- Ensure Safety - Double ceramic fuse is anti-burn and protects from overloading，and it will be more secure and reliable； F400mA/600V and F10A/600V explosion-proof ceramic fuse tubes can protect the multimeter effectively.
- Additional Tips - Please take off the cap before using the test leads. Check the manual for more usage information.
- Incoming 240-volt supply at the water heater
- Tripped high-limit reset button
- Failed upper or lower thermostat
- Loose, burned, or corroded wires
- Incorrect wiring after a previous repair
- Non-simultaneous element sequence issues
- Heavy sediment or scale insulating the element
Most standard residential electric tanks are non-simultaneous, meaning the upper and lower elements do not usually heat at the same time. The upper element heats the top of the tank first. Once the upper thermostat is satisfied, power shifts to the lower thermostat and lower element. That sequencing matters. A failed upper thermostat or upper element can prevent the lower side from ever doing its job.
Replacing an Element: Parts, Costs, and Practical Choices
Common 240-volt, 4500-watt replacement elements are not expensive parts. In 2026, DIY element prices at major U.S. retailers typically run about $19 to $60. Basic copper high-watt-density elements are often around $19 to $30. Stainless low-watt-density elements are commonly around $26 to $35. Premium titanium-style elements can run about $60.
DIY tune-up kits that include two 4500-watt elements plus upper and lower thermostats are commonly about $35 to $45. That can be a good value if the tank is drained and the parts are the same age.
| Repair option | Typical 2026 cost | Best fit |
|---|---|---|
| Single DIY element | $19-$60 | Confident homeowner with safe electrical testing skills |
| DIY tune-up kit | $35-$45 | Replacing both elements and thermostats while tank is drained |
| Professional element replacement | $200-$300 | Most homeowners, hard access, stuck elements, uncertain diagnosis |
| General water heater repair | $303-$365 starting range | Broader troubleshooting beyond the element |
| Full water heater replacement | $1,586-$1,843 starting range | Old, leaking, corroded, inefficient, or unreliable tank |
| New electric water heater install | $1,920-$2,254 starting range | New installation or larger replacement scope |
If the tank is in good condition and 4 to 8 years old, replacing an element is usually a sensible repair. If the tank is 10 to 15 years old, leaking, rusting, making heavy sediment noise, or surrounded by signs of corrosion, we would compare the repair against replacement before spending money on parts and labor.
The Tool Desk
Outbyte PC Repair FREERepair Windows errors before they cause bigger problemsFix Now →Outbyte Driver Updater FREEScan for outdated or missing drivers - takes under a minuteDriver Scan →High-Watt-Density vs Low-Watt-Density Elements
The cheapest element on the shelf is usually a high-watt-density copper element. It can work fine in many homes, but it runs hotter at the surface. In hard-water areas, that higher surface temperature can bake minerals onto the element faster.
Low-watt-density and fold-back elements spread the heat over more surface area. Stainless, Incoloy, and titanium-style elements cost more, but they are often the better choice when the tank has mineral buildup or the home has hard water. On our projects, if we are already draining a tank in a hard-water neighborhood, we usually recommend replacing both elements as a pair and stepping up from the cheapest copper part.
Do not increase wattage casually. Replacing a 4500-watt element with a 5500-watt element is not just a parts swap. The water heater nameplate, internal wiring, breaker, and branch circuit must be rated for the higher load. If the unit is not rated for 5500 watts, stay with the original wattage.
DIY or Hire a Pro?
A homeowner with good tool skills can test resistance safely if they understand electrical lockout, voltage verification, and basic multimeter use. The actual ohm test is quick. The risk comes from treating a 240-volt appliance like a low-voltage device.
Outdated Drivers Are Slowing You Down
One free scan finds every outdated or missing driver and matches the right update for your exact hardware.Free scan · exact hardware matchWindows Errors? Fix Them Before They Spread
Repair common Windows errors and clear accumulated junk for a smoother, more stable PC - no reinstall needed.Free scan · no reinstallRank #4
- Accurately Test Full Features: Accurately measures AC/DC voltage, DC current, resistance, continuity test, diode and batteries.
- High Quality & Safety :Our multimeter is designed to safely and accurately troubleshoot a variety of automotive and household electrical problems. Overload Protection on all ranges to ensure long-term service life,Low Battery Indication, Audible continuity sensor checks that the circuit or wires conduct electricity. Double insulation with a good angled stand for hand free use.
- EASY TO USE: 2.7"Large Backlit LCD Display, Data Hold, Easy to Read Large Back-light Screen forvisibility in dimly light areas. Our mutimeter tester is widely used in Car repair, Homeuse, Schools, laboratories, Families and factories, suitable for Car Drivers, Beginners,Professional Electricians, Housewives, Students Use.
- Nice Protective Orange Shell with Stand Built: Our digital multimeter can be hand held or stood using its fold out stand. Removable thick rubber cover is made of kind of non-slip slightly soft plastic that will help with drop protection & minor bumps protection.
- 2 YEARS Quality Guarantee & Included 9V Battery: The compartment lid at the back is easy to remove. Battery/Set of Test Leads/User Manual are Included.They guarantee against faulty materials and workmanship for 2 years-giving you total peace of mind. If there is any issue within24 months of your purchase, we will replace it for vou with no doubt.
DIY May Be Reasonable When
- You are only testing resistance, not changing wiring.
- You have a multimeter and know how to verify AC voltage is absent.
- The water heater is accessible and dry.
- The breaker is clearly identified and can be locked or controlled while you work.
- You are comfortable disconnecting and reconnecting one element wire correctly.
Hire a Pro When
- You cannot verify the power is off.
- The access compartment has burned, melted, or brittle wiring.
- The element is stuck, corroded, or leaking at the gasket.
- The tank is in a finished space where a leak would cause expensive damage.
- The diagnosis points to thermostats, wiring, breaker issues, or circuit problems.
- The water heater is old enough that repair-versus-replacement needs a real look.
Professional element replacement commonly lands around $200 to $300 nationally in 2026, assuming a basic part and normal access. Costs rise with emergency service, tight closets, corroded threads, sediment flushing, stuck elements, electrical troubleshooting, or replacing both elements and thermostats.
Independent reader supportYour contribution helps us test, update, and keep practical guides available for everyone.Permit and Code Notes for Homeowners
A simple diagnostic ohm test is not the same scope as replacing or relocating a water heater. Testing an element with the power off does not usually trigger permit work. Replacing a full water heater, changing the circuit, relocating the unit, modifying venting, adding a pan or drain, installing an expansion tank, or changing plumbing layout can move the job into permit and inspection territory.
Permit fees for full water heater replacement commonly run about $50 to $250, depending on jurisdiction. One municipal permit guide lists an $85 water heater permit fee plus a final plumbing inspection. Local requirements vary, so the authority having jurisdiction gets the final say.
For replacement work, code details matter: temperature and pressure relief valve discharge, pan and drain requirements, seismic strapping where required, expansion control, working clearances, disconnecting means, wire sizing, breaker sizing, and proper materials. These are not cosmetic details. They affect safety, insurance, inspection approval, and the service life of the installation.
Common Testing and Replacement Mistakes
The mistakes we see most often are preventable. The first is testing resistance with power still on. That can destroy the meter and create a shock or arc hazard. Always turn off the breaker and verify with a meter before touching terminals.
The second is leaving both wires connected while reading ohms. That can backfeed through the heater controls and produce a reading that looks meaningful but is not actually the element by itself.
The third is skipping the ground test. Terminal-to-terminal resistance can look normal while the element is still grounded to the tank. Test each terminal to the metal tank or flange.
The fourth is dry-firing a new element. After replacing an element, the tank must be completely full before power is restored. Open a hot faucet and let it run until water flows steadily with no air sputtering. Energizing an element in air can burn it out almost instantly.
Best Value
- VERSATILE FUNCTIONALITY: Measures AC/DC voltage up to 600V, 10A AC/DC current, 50MΩ resistance; additional features include continuity, temperature, capacitance, frequency/duty cycle and diode test
- LEAD-ALERT PROTECTION: LEDs on the meter illuminate to indicate proper test lead placement, enhancing accuracy and safety during measurements
- BACKLIT DISPLAY: LCD shows clear readings in low-light conditions for enhanced visibility
- ACCURATE MEASUREMENTS: Auto-ranging and True Root Mean Squared (TRMS) technology provides precise and accurate measurements
- CONVENIENT FEATURES: Test lead holders on the back of the meter, kickstand and optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation
Other common errors include overtightening the element, pinching or reusing an old gasket, ignoring sediment, installing the wrong wattage, or continuing to repair a tank that is already leaking. If the tank itself is compromised, a new element will not solve the real problem.
Bottom Line
A typical 240-volt residential water heater element should usually read somewhere from 10 to 19 ohms, but the correct number comes from wattage. A 4500-watt element should read about 12.8 ohms. A 5500-watt element should read about 10.5 ohms. OL means open. Near zero means shorted. Continuity from either terminal to the tank means the element is grounded.
If the element reads correctly and the heater still does not make hot water, continue the diagnosis instead of replacing parts blindly. Check supply voltage, the high-limit reset, thermostats, wiring condition, element sequencing, and sediment. On a sound mid-life tank, an element repair is usually worthwhile. On an old, corroded, leaking, or inefficient tank, replacement may be the better construction decision.
Frequently Asked Questions
How many ohms should a 4500-watt water heater element read?
A 4500-watt, 240-volt water heater element should read about 12.8 ohms. Field readings around 12 to 14 ohms are usually acceptable, depending on meter accuracy, lead resistance, and element condition.
Recommended Free Tools
How many ohms should a 5500-watt water heater element read?
A 5500-watt, 240-volt element should read about 10.5 ohms. If the reading is OL or infinite, the element is open. If it is near 0 ohms, the element is likely shorted.
Do I need to disconnect wires before testing a water heater element?
Yes. Turn off the breaker, verify 0 volts with a multimeter, then disconnect at least one wire from the element before measuring resistance. Leaving both wires connected can give a false reading through thermostats or other wiring.
Can a water heater element test good for ohms but still not heat?
Yes. A normal ohm reading only shows that the element coil is intact. No-hot-water problems can also come from a failed thermostat, tripped high-limit switch, loose or burned wiring, no incoming 240 volts, sediment buildup, or a grounded element.
Can I replace a 4500-watt element with a 5500-watt element?
Only if the water heater nameplate, internal wiring, breaker, and branch circuit are rated for 5500 watts. If the unit is rated for 4500 watts, replace it with the same wattage.
What’s actually slowing this PC down?
Pick the symptom - the matching free tool is one click away.
How much does it cost to replace a water heater element in 2026?
A DIY replacement element usually costs about $19 to $60. A DIY tune-up kit with two elements and thermostats is often about $35 to $45. Professional element replacement commonly costs about $200 to $300 nationally in 2026, depending on access and scope.
