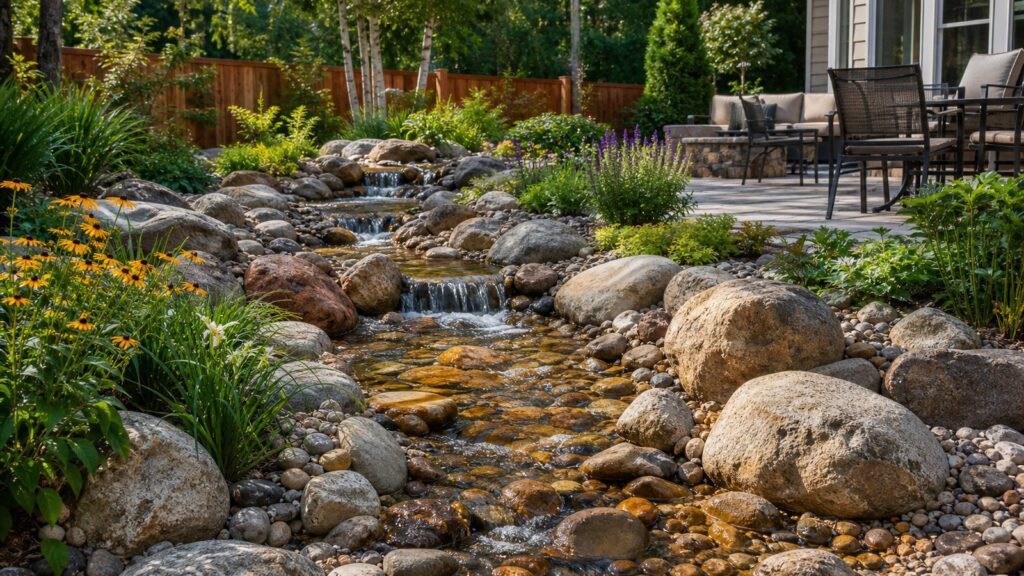

A natural backyard stream can change the whole feel of a yard, but the best versions are built more like small construction projects than weekend decoration. For most US homes, a backyard stream is a closed-loop water feature: water spills from a waterfall or diffuser, runs down a lined streambed, then disappears into a pond or hidden gravel basin where a pump sends it back uphill.
That distinction matters. You are not usually digging a creek, connecting to a drainage ditch, or routing water into the storm system. You are building a controlled, recirculating feature that needs excavation, grading, liner protection, pump sizing, stone placement, electrical coordination, and a maintenance plan.
For 2026, a small professional pondless stream or waterfall often lands around $7,000 to $10,000 nationally. A more realistic budget for a natural-looking 10- to 20-foot stream with quality stone, multiple drops, a properly sized basin, and clean finish work is commonly $10,000 to $20,000. Large custom features with boulders, lighting, patios, bridges, retaining walls, or difficult access can reach $20,000 to $50,000 or more.
On our job sites, the streams that age well have three things in common: the water is visible and audible from the right places, the liner and basin are built for serviceability, and the surrounding grade moves water away from the house instead of creating a new drainage problem.
Recommended Free Tools
#1 Best Overall
- EPDM rubber pre cut and boxed pond liner
- Flexible for creative designs
- Environmentally friendly; fish friendly
- Easy maintenance; lasting beauty
- Measures 15-feet length by 20-feet width by 0.045-inch thick
What a Natural Backyard Stream Actually Is
A residential backyard stream is usually a recirculating water feature. The system starts at the high point with a waterfall spillway, diffuser, or small cascade. Water travels through a shallow lined channel, drops through riffles and pools, then enters a pond or a pondless reservoir. A submersible pump in a pump vault pushes the water back to the top through buried flexible PVC.
A pondless stream is the most common choice for homeowners who want moving water without an exposed pond. The water disappears into a gravel-covered basin filled with reservoir blocks or a manufactured basin. Because the stored water sits below rock and gravel, there is less open standing water, fewer child-safety concerns, fewer mosquito issues, and less visible algae than a traditional pond.
The typical parts list includes 45-mil EPDM pond liner, geotextile underlayment, a waterfall spillway, submersible pump, pump vault, reservoir blocks, flexible PVC pipe, check valve, ball valve or flow control, bulkhead fittings, pond foam, gravel, river rock, accent boulders, edge stone, and moisture-tolerant plants. Optional upgrades include low-voltage lighting, an automatic fill valve, smart controls, and water treatment equipment.
The best backyard streams do not look like straight trenches filled with the same bagged river rock. A natural stream has irregular meanders, varied stone sizes, embedded boulders, small pools, pinch points, and planted margins. The goal is to make the water appear as if it found its way through the landscape, even though every inch of that path is planned.
What’s actually slowing this PC down?
Pick the symptom - the matching free tool is one click away.
How Much a Backyard Stream Costs in 2026
Costs vary because a stream is affected by site access, slope, stone weight, pump size, basin volume, soil conditions, electrical distance, and the level of detail in the finish. A 6-foot decorative run beside a patio is a different project than a 25-foot boulder-lined stream cutting through a sloped yard.
For a basic installed pondless waterfall or short stream, national 2026 averages cluster around $7,000, with many smaller professional builds falling between $4,000 and $10,000. Custom work can exceed $15,000 quickly. For a more convincing natural stream with 10 to 20 linear feet of water movement, multiple drops, and quality stone placement, $10,000 to $20,000 is a practical planning range.
Some specialty water-feature contractors price stream additions by linear foot. A published benchmark of about $950 per linear foot means a 10-foot stream can add roughly $9,500 to a base feature, while a 20-foot stream can add about $19,000. That number makes sense when you account for liner width, excavation, stone tonnage, pipe sizing, flow testing, and hand placement of rock.
| Project Type | Typical 2026 Budget | What It Usually Includes |
|---|---|---|
| Small DIY pondless stream kit | $2,500-$5,000 materials | Kit, liner, pump, basin parts, small rock allowance; excludes electrical work, rentals, delivery, and owner labor |
| Small professional pondless waterfall or short stream | $4,000-$10,000 | Compact feature, modest basin, simple stonework, limited elevation change |
| Natural 10-20 foot backyard stream | $10,000-$20,000 | Multiple drops, quality liner system, larger basin, boulder/cobble mix, planting, flow testing |
| Large custom water feature | $20,000-$50,000+ | Long stream run, large boulders, lighting, patios, bridges, walls, automation, difficult access, heavy equipment |
The biggest cost drivers are length, width, number of waterfalls, vertical lift, pump size, basin capacity, stone type, access for equipment, excavation difficulty, disposal, electrical work, lighting, automatic fill systems, permits, and landscape restoration. If the backyard has narrow gates, steep slopes, buried utilities, rocky soil, or poor drainage, labor increases.
Budget separately for 811 utility marking, licensed electrical work, a dedicated GFCI-protected circuit if needed, stone delivery, drainage correction, low-voltage lighting, autofill, seasonal maintenance, and winter startup or shutdown. Those items are often outside the pretty rendering, but they are what make the feature usable.
Where to Place the Stream
The first layout decision is not length. It is viewpoint. We start by asking where the homeowner will actually experience the water: the kitchen window, covered porch, patio seating, primary bedroom, entry walk, or outdoor dining area. A 12-foot stream in the right sightline is usually more valuable than a 30-foot run hidden along a fence.
Sound also matters. A 6-inch drop over flat stone produces a different sound than a 16-inch fall into a deeper pocket. Near a dining area, a steady soft riffle may be better than a loud cascade. Near a property line, we pay attention to neighbor impact and local noise expectations.
Slope is useful, but it has to be controlled. A backyard stream does not need a steep hill. A total elevation change of 12 to 24 inches can create several small drops if the run is designed well. On flatter sites, we may create a low berm or integrate the high point into a planting bed, seat wall, or patio edge. On steep sites, we slow the water with step-down pools, boulders, and wider resting areas so it does not look like a drainage chute.
Windows Errors? Fix Them Before They Spread
Repair common Windows errors and clear accumulated junk for a smoother, more stable PC - no reinstall needed.Free scan · no reinstallOutdated Drivers Are Slowing You Down
One free scan finds every outdated or missing driver and matches the right update for your exact hardware.Free scan · exact hardware matchKeep the feature away from foundations unless the grading is deliberate. The surrounding soil should direct rainwater and overflow away from the house and away from neighboring properties. A beautiful stream that sends runoff toward a basement wall is not a successful project.
Design Details That Make It Look Natural
Natural-looking water features are built with controlled irregularity. The channel should widen and narrow. The water should speed up through pinch points, break over stone, then settle into small pools. The edges should disappear under boulders, gravel, plants, and soil rather than showing a clean black liner line.
Rank #2
- 45-mil EPDM Rubber Liner - Durable, flexible, UV and puncture resistant, fish and wildlife safe for koi ponds, water gardens, and aquaponics systems.
- Versatile Use for Outdoor Water Features – Ideal pond liner for outdoor ponds, waterfalls, streambeds, fish hatcheries, and retention basins.
- No Plasticizers – Won’t Crack or Split – Unlike vinyl liners, EPDM stays flexible year-round without becoming brittle over time.
- Easy to Install & Shape – Lays flat and conforms easily to curves, shelves, and other pond features—perfect for DIY installations.
- Certified Fish & Wildlife Safe – Backed by – Safe for koi, turtles, and aquatic life. Certified by Guardian Systems Inc. and supported by a 25-year manufacturer’s warranty for long-term peace of mind.
A common mistake is using one size of rounded river rock across the whole bed. Real streambeds have hierarchy. We use larger anchor boulders first, then cobble, then gravel. A small stream might use 12- to 24-inch boulders at key turns, 4- to 8-inch cobble in the active flow, and 3/8- to 1-inch gravel for joints and pockets. Larger features may need machine-set boulders weighing hundreds or thousands of pounds.
Meanders should feel believable. A stream can curve, but it should not wiggle randomly every few feet. Turns need a reason: a boulder, a planting mass, a grade change, a patio edge, or an existing tree root zone that must be protected. The outside of a bend often receives larger stone, while calmer inside edges can collect gravel and plants.
Water depth is usually shallow in a pondless stream. Many residential streambeds are only 2 to 6 inches deep in normal operation, with deeper pockets at falls or pooling areas. The liner and edges still need enough freeboard above the running water so splashing, leaf buildup, and pump surges do not send water out of the system.
Pondless Stream vs Traditional Pond
A pondless stream is not always better, but it is often the cleaner choice for a busy homeowner. With a pondless system, the reservoir is hidden under rock and gravel. You get moving water, sound, and the look of a natural stream without maintaining an open pond ecosystem.
A traditional pond makes sense when the goal includes fish, aquatic plants, reflective water, or a larger garden habitat. It requires more biological balance, filtration, algae management, and safety planning. A pondless stream is generally easier to fit beside a patio, in a front yard, or in a smaller backyard because the visible water volume is limited.
| Feature | Pondless Stream | Traditional Pond |
|---|---|---|
| Visible standing water | Minimal; water stores below gravel | Yes; open water surface |
| Child-safety concerns | Usually lower | Higher, depending on depth and access |
| Mosquito and algae risk | Usually lower with moving water | Requires more active management |
| Best for | Sound, movement, small yards, low-profile design | Fish, aquatic plants, habitat, reflective water |
| Maintenance level | Moderate | Moderate to high |
If the homeowner wants koi, water lilies, or a visible aquatic garden, a pond may be worth the extra work. If the goal is a natural stream beside an outdoor living area, pondless is usually the more practical build.
Quick wins for a faster PC:
Scan for outdated or missing drivers - takes under a minuteDriver Scan →Repair Windows errors before they cause bigger problemsFix Now →Fix the driver behind crashes, sound loss and screen glitchesFind Drivers →Core Construction Steps
A backyard stream starts with layout. We use a garden hose, marking paint, stakes, or flags to test the path before digging. This is the time to adjust curves, viewpoints, service access, and where the basin will sit. The basin should be accessible because the pump will need cleaning, inspection, and eventual replacement.
Excavation and Grading
The streambed is excavated to create the channel, falls, shelves, and basin. The basin is usually the deepest excavation because it must hold enough water for the stream in operation and enough reserve volume when the pump shuts off. Undersized basins are one of the most common causes of poor performance. The pump runs dry, the water level swings too much, or the reservoir overflows when water drains back from the stream.
Soil should be compacted and shaped before liner installation. Sharp roots, construction debris, and stones need to be removed. Adjacent grades should be shaped so stormwater does not wash mulch and soil into the stream during heavy rain.
Liner and Underlayment
For residential streams, 45-mil EPDM pond liner is a durable standard. It remains flexible, handles movement better than thin plastic liners, and can be seamed or patched when needed. Underlayment goes below the liner to protect it from soil and stone. In high-wear streambeds, we also use underlayment above the liner before setting rock. That extra layer helps prevent punctures when heavy boulders are adjusted by hand or machine.
Liner edges should rise above the normal waterline with enough height to prevent water from escaping into mulch or soil. Low edges are a leak waiting to happen. The liner should extend beyond the visible stream edge, then be hidden with stone, gravel, soil, and plants after testing.
Rock Placement
Rock placement is where the feature starts to become believable. We set anchor boulders first, especially at turns, drops, and edges. Then we add cobble and gravel to direct flow, lock the liner down, and soften transitions. Pond foam can help seal gaps behind waterfall stones, but it is not a substitute for good grading and stone layout.
The stream should be run-tested before the liner is trimmed or the final edge stones are locked in. During testing, we look for splash-out, weak flow, low liner edges, water disappearing behind rocks, and basin drawdown. It is much cheaper to move a stone during testing than after all gravel, planting, and mulch are finished.
Pump Sizing and Basin Capacity
Pump sizing depends on the desired flow width, vertical lift, pipe length, fittings, and the total head height. A common planning rule for a waterfall is roughly 100 gallons per hour per inch of spillway width for light flow, 150 gallons per hour per inch for medium flow, and 200 gallons per hour per inch for strong flow.
Free tools Windows power users keep installed
One-click scans. No signup required.
Rank #3
- Keep Your Fish Secure: By using a pond liner, you can prevent water and soil from seeping out of the pond and contaminating water resources. This will create a better living environment for your fish. Moreover, you can add aquatic plants, rocks, and wildlife to make your pond more attractive.
- 45 Mil Super Thick: The pond liner is 15' x 20' in size and is designed to be puncture and tear-proof. This means that you don't have to worry about sharp rocks or root growth damaging the liner. Additionally, the liner provides a flat surface and reduces soil buildup, which makes cleaning your pond easier and quicker.
- Prevents Aging: Our fish pond liner is made of premium EPDM material. This means that even when exposed to direct sunlight, the liner will not crack, split or deteriorate, allowing it to retain its properties for years to come.
- Flexible & Pliable: Our pond lining is flexible and easy to bend and fold, making it suitable for almost any pond shape. Before purchasing, it's important to determine your pond's precise depth and width. We recommend buying a liner that's slightly larger than your pond. Any excess liner can be easily cut off after installation.
- Natural Pond Look: No tools required for installation. It's suitable for a variety of water features, including water gardens, waterfalls, outdoor ponds, fish/koi ponds, and more. The liner can even be extended for use in planting beds and other self-watering projects.
For example, a 12-inch-wide waterfall may need about 1,200 GPH for a gentle sheet, 1,800 GPH for a fuller flow, or 2,400 GPH for a stronger cascade before accounting for head loss. If the pump has to push water 4 feet uphill through 35 feet of pipe with several fittings, the selected pump must still deliver the target flow at that head height. Looking only at the pump’s maximum GPH rating at zero head leads to weak water movement.
Pipe diameter matters too. A pump can be powerful on paper and still perform poorly through undersized pipe. Many small features use 1- to 1.5-inch flexible PVC, while larger flows may need 2-inch line to reduce friction loss. A ball valve or flow control lets the crew fine-tune the feature after startup.
Basin capacity should cover the water in the stream, the operating drawdown, evaporation, splash loss, and drain-back when the pump shuts off. A small basin may look acceptable on installation day but become a maintenance headache in July heat. In hot weather, homeowners should expect to top off water regularly unless an automatic fill valve is installed.
Electrical, Permits, and Stormwater Rules
Water and electricity need proper planning. We coordinate electrical early so the outlet or circuit, GFCI protection, conduit route, transformer location, controls, and lighting are known before finish landscaping. Extension cords, indoor-rated components, and unprotected outlets do not belong in a permanent water feature.
The Tool Desk
Outbyte Driver Updater FREEFix the driver behind crashes, sound loss and screen glitchesFind Drivers →Outbyte PC Repair FREERepair Windows errors before they cause bigger problemsFix Now →Many residential water features require GFCI protection and weather-rated equipment. Larger or more complex installations may require a licensed electrician, especially if a new circuit, buried conduit, transformer, or control system is added. Electrical requirements can change by jurisdiction and code cycle, so the final design should be checked against local requirements before construction.
Permits depend on location, size, depth, electrical work, excavation, retaining walls, and whether the feature affects drainage. Some cities regulate ponds and water features by depth or volume. Stormwater rules can apply if work changes runoff patterns, connects to a storm system, disturbs enough soil, or affects a protected drainage area.
Do not connect a backyard stream to a natural creek, wetland, drainage ditch, or storm drain without formal review. That can create environmental, drainage, and local stormwater problems. A residential stream should be a closed-loop system with controlled overflow and surrounding grade that moves rainwater safely away from structures and property lines.
Independent reader supportYour contribution helps us test, update, and keep practical guides available for everyone.Maintenance Homeowners Should Expect
Pondless does not mean maintenance-free. It means lower visible-water maintenance than a pond. The owner should still expect seasonal leaf removal, pump intake cleaning, water top-offs, algae control, liner edge checks, and winter procedures in freeze climates.
Do these 3 things before closing this tab:
1Clear out junk files and repair common Windows errors2Fix the driver behind crashes, sound loss and screen glitches3Repair Windows errors before they cause bigger problemsDuring heavy leaf drop, the intake area and pump vault may need attention weekly. In cleaner locations, monthly inspection may be enough during the active season. The pump should be easy to reach without dismantling half the feature. That is why pump vault placement matters during design.
Evaporation and splash loss increase in hot weather, windy locations, and streams with multiple falls. An automatic fill valve can reduce the burden, but it should be installed with appropriate backflow protection where required. If municipal water is used, water treatment or dechlorinator may be needed depending on the system and plantings.
In freeze climates, winterization depends on the pump, basin, pipe layout, and whether the homeowner wants year-round operation. Some systems are shut down, cleaned, and restarted in spring. Others can run through winter if designed for it, but ice buildup must be watched so water does not divert out of the streambed.
When to DIY vs When to Hire a Pro
A handy homeowner can build a small pondless stream, especially with a complete kit. DIY material budgets commonly start around $2,500 to $5,000 for small-to-medium features before equipment rental, stone delivery, electrical work, mistakes, and labor. A 16-foot medium stream kit can retail around the high-$2,000 to low-$3,000 range, but that is only part of the finished cost.
DIY makes the most sense when the feature is small, the site is flat or gently sloped, access is easy, electrical service already exists in the right location, and the homeowner is comfortable moving rock, cutting liner, assembling pipe, and troubleshooting leaks. Even then, plan for more labor than expected. Wet gravel, boulders, and excavated soil add up quickly.
Hire a professional when the feature is longer than about 10 feet, has multiple drops, needs large boulders, sits near a patio or foundation, requires new electrical work, affects drainage, or needs to integrate with hardscape. A contractor also makes sense when the homeowner wants the stream to look natural rather than kit-built.
Rank #4
- EPDM rubber pre cut and boxed pond liner
- Flexible for creative designs
- Environmentally friendly; fish friendly
- Easy maintenance; lasting beauty
- Measures 5-feet length by 10-feet width by 0.045-inch thick
On our crews, the value is not just digging and stacking stone. It is knowing how much basin volume the feature needs, how high to carry liner edges, how to protect the liner under boulders, how to keep water from wicking into mulch, how to plan service access, and how to test the system before the expensive finish work is locked in.
Common Mistakes That Cause Problems
The most expensive mistakes usually happen early. An undersized basin can make the pump run dry or overflow when the pump turns off. A pump selected only by maximum GPH can deliver weak flow after head height and friction losses. A liner installed without proper underlayment can puncture under sharp stone. Low edges can let water escape into mulch and soil, making the owner think the liner has failed.
The Tool Desk
Outbyte PC Repair FREEClear out junk files and repair common Windows errorsFree Scan →Outbyte Driver Updater FREEScan for outdated or missing drivers - takes under a minuteDriver Scan →Design mistakes are just as common. A stream that is too straight, too narrow, or filled with one size of river rock looks artificial. A feature placed under messy trees without intake access becomes a maintenance problem. A stream aimed toward the house or neighbor creates liability instead of relaxation.
The fix is disciplined sequencing: design from viewpoints, confirm grades, size the basin and pump, protect the liner, set large stone first, run-test the water, then finish the edges. Do not trim liner early. Do not bury the pump where it cannot be serviced. Do not assume the first water test is the final one.
Planning Checklist Before You Build
Before construction starts, confirm the stream length, width, total elevation change, waterfall widths, basin location, pump access, electrical plan, overflow route, and maintenance expectations. Mark utilities through 811 before excavation. Check local permit rules if the feature has meaningful depth, electrical work, retaining walls, significant soil disturbance, or drainage changes.
For materials, plan around 45-mil EPDM liner, geotextile underlayment, a properly rated pump, pump vault, reservoir blocks, flexible PVC, check valve, ball valve, waterfall spillway, pond foam, boulders, cobble, gravel, and plants. For tools, expect layout hose or paint, shovels, mattock, wheelbarrow, tamper, level or laser level, tape measure, utility knife, pipe cutter, rake, rock bars, gloves, knee protection, and possibly a mini-excavator.
Free tools Windows power users keep installed
One-click scans. No signup required.
A backyard stream should feel calm when it is finished, but the build should be deliberate. The best results come from treating it as a small engineered landscape system: closed-loop water, protected liner, correct pump, accessible basin, coordinated electrical, controlled drainage, and stonework that looks like it belongs to the site.
Frequently Asked Questions
How much does it cost to build a natural backyard stream in 2026?
A small professional pondless waterfall or short stream often costs $4,000 to $10,000, with national averages near $7,000. A natural-looking 10- to 20-foot stream with multiple drops and quality stone commonly costs $10,000 to $20,000. Large custom features can reach $20,000 to $50,000 or more.
Can a backyard stream be built without a pond?
Yes. A pondless stream uses a hidden gravel or reservoir basin instead of an exposed pond. Water runs through the streambed, disappears into the basin, and is pumped back to the top. This is often safer and easier to maintain than an open pond.
Do I need a permit for a backyard stream?
Permit rules vary by city and county. Permits may be required for electrical work, deeper water features, retaining walls, significant excavation, drainage changes, or stormwater impacts. Always check local requirements before digging.
Quick wins for a faster PC:
Repair Windows errors before they cause bigger problemsFix Now →Scan for outdated or missing drivers - takes under a minuteDriver Scan →What size pump do I need for a backyard stream?
Pump size depends on spillway width, vertical lift, pipe length, fittings, and desired flow. A common starting point is 100 GPH per inch of waterfall width for light flow, 150 GPH per inch for medium flow, and 200 GPH per inch for strong flow, adjusted for head loss.
What causes backyard stream water features to leak?
Common causes include punctured liner, low liner edges, water wicking into mulch, splash-out at waterfalls, poorly foamed rock gaps, and water escaping behind edge stones. Run-testing before trimming liner is one of the best ways to catch these problems.
Is a backyard stream a good DIY project?
A small kit-based pondless stream can be DIY-friendly for a skilled homeowner with good access and existing electrical service. Hire a pro for longer streams, large boulders, multiple waterfalls, new electrical work, drainage concerns, or integration with patios and retaining walls.
