If you searched for TM-1817 AVEVA Everything3D HVAC Modelling, you are probably looking at a technical training document for AVEVA E3D, a professional 3D design platform used in complex industrial environments. That software is built for large, multi-discipline projects such as process plants, power facilities, marine work, mining, metals, and other assets where ductwork, pipe, cable tray, structure, and equipment must be coordinated in a full 3D model.
For a homeowner, the practical takeaway is simpler: you do not need AVEVA E3D to replace residential ductwork, but you do need the same job-site discipline that good modeling represents. Ducts must be sized, routed, sealed, insulated, supported, inspected, and commissioned. A nice-looking layout is not enough if the rooms do not receive the right airflow.
On our construction and remodeling projects, the worst HVAC outcomes usually come from one of three decisions: replacing equipment without evaluating the ducts, relying on rule-of-thumb sizing, or forcing ducts through framing after the rest of the design is already locked. The result can be noisy registers, weak airflow, hot and cold rooms, sweating ducts, high static pressure, short cycling, humidity problems, and equipment that wears out early.
This guide translates professional HVAC modeling principles into what matters for a US residential project in 2026: when 3D planning is worth it, what Manual J and Manual D actually do, what duct replacement costs, what permits and inspections may involve, and what a homeowner should require in a serious HVAC quote.
Recommended Free Tools
#1 Best Overall
- PERMANENTLY FLEXIBLE: Acrylic latex formula provides excellent elasticity and water resistance
- INTERIOR / EXTERIOR USE: Can be used either inside or outside the home
- STRONG ADHESIVE GRIP: Provides a tough bond on metal to metal connections
- NON FLAMMABLE: Safe to use in enclosed areas. Made in the USA
- DISCOLORATION RESISTANT: Cured sealant will not discolor over time
What AVEVA E3D HVAC Modeling Is, and What It Is Not
AVEVA E3D Design is a 3D design and engineering platform used for complex facilities. Its HVAC design environment is meant to model and detail duct networks in three dimensions, coordinate them with other trades, and reduce clashes before fabrication or installation. In that setting, a duct is not just a rectangle on paper. It has width, height, elevation, bend radius, fittings, supports, access requirements, and physical conflicts with beams, pipe, equipment, and structure.
That is valuable thinking, but it is usually more software than a house needs. A typical residential duct replacement does not require an industrial plant design platform. A good HVAC contractor can often do the job with field measurements, load calculations, duct design software, clear drawings, and experience. For a straightforward one-story replacement in an accessible attic, that may be enough.
Where homeowners should pay attention is the concept behind the software: ducts need to be planned before they are installed. In a finished basement, tight crawlspace, two-story remodel, kitchen addition, attic conversion, or high-end renovation with low ceiling tolerances, a 3D or BIM-style coordination process can prevent expensive field decisions. Even a simple 3D coordination model can show whether a 10-inch round duct can pass under a beam, whether a trunk line will steal too much ceiling height, or whether a return path conflicts with plumbing and recessed lighting.
The point is not to ask every residential contractor for AVEVA E3D. The point is to ask for evidence that the duct system has been designed, not guessed.
Crashes, No Sound, or Screen Glitches?
Random freezes, missing sound and display glitches usually trace back to one bad driver. Find and replace yours safely.Free scan · under a minuteWindows Errors? Fix Them Before They Spread
Repair common Windows errors and clear accumulated junk for a smoother, more stable PC - no reinstall needed.Free scan · no reinstallResidential Duct Design Starts With Manual J, Manual S, Manual T, and Manual D
For homes, the key US design references are ACCA Manual J, Manual S, Manual T, and Manual D. These are the standards that turn the house into numbers a contractor can actually use.
Manual J is the room-by-room heating and cooling load calculation. It considers square footage, insulation, windows, orientation, air leakage, climate, occupancy assumptions, and internal loads. It tells you how much heating and cooling the house needs by room, not just for the whole building.
Manual S uses that load to select equipment. This matters because a 3-ton air conditioner is not automatically better than a 2.5-ton unit. Oversized equipment can short cycle, remove less humidity, run louder, and stress ducts that were never designed for the airflow.
Manual T addresses registers and grilles. Register location, throw, spread, noise, and return grille sizing all affect comfort. Two rooms can have the same cubic feet per minute requirement and still need different register layouts.
Free tools Windows power users keep installed
One-click scans. No signup required.
Manual D is the residential duct design method. It sizes trunks, branches, returns, fittings, and available static pressure so the system can deliver the required airflow. This is where ductwork stops being a box of parts and becomes a system.
On our job sites, we want the equipment size and duct plan to be tied together. If a contractor proposes a new furnace, air conditioner, or heat pump but cannot explain the load calculation, duct sizing, return air path, filter sizing, and static pressure target, the quote is incomplete.

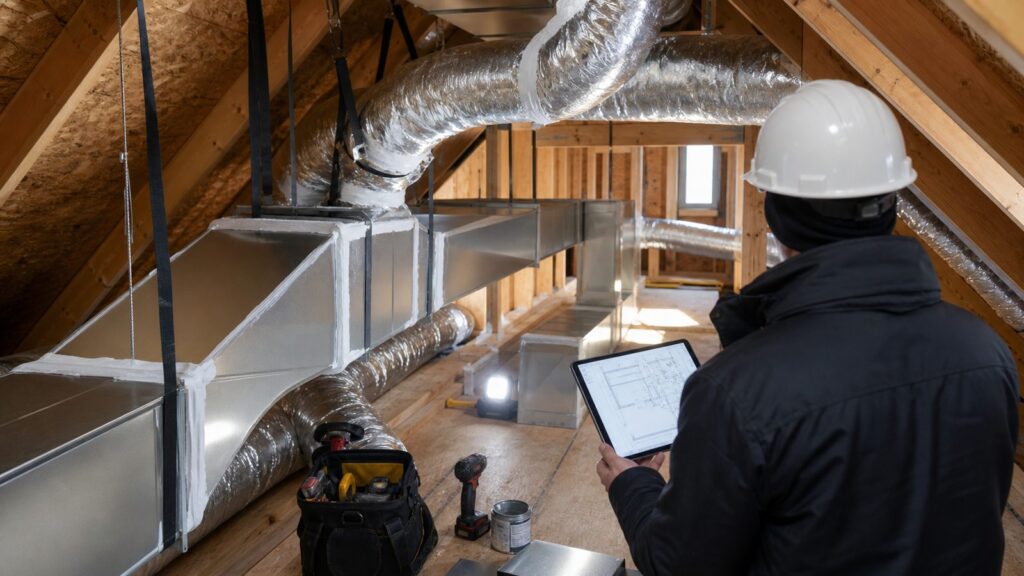

What Professional Duct Planning Looks Like in a House
Good duct planning begins before demolition. A crew should know the equipment location, supply and return routes, framing constraints, insulation needs, and access requirements before duct materials arrive. In remodels, that often means opening small inspection areas, checking joist direction, measuring chases, identifying structural beams, and coordinating with plumbing, electrical, fire blocking, and finish carpentry.
Clash-Free Routing
In industrial software, clash detection means the model alerts the team when two physical objects occupy the same space. In a house, clash-free routing means the installer has verified that ducts can pass through the actual structure without crushing flex duct, cutting structural members improperly, blocking access, or lowering ceilings more than planned.
A common example is a basement finish where the homeowner wants an 8-foot ceiling. A main trunk may need 8 inches by 20 inches of clear duct size, plus insulation, hangers, framing, drywall, and clearance. That can turn into a soffit that drops 12 to 16 inches below the joists. If that is discovered after framing, everyone loses time and money.
Airflow Before Aesthetics
Ducts should fit the house, but they still have to move air. Long flex runs, tight bends, undersized returns, restrictive filters, and too many elbows can raise static pressure and reduce delivered airflow. The rooms may look finished, but the HVAC system struggles.
Rank #2
- PERMANENTLY FLEXIBLE: Acrylic latex formula provides excellent elasticity and water resistance
- INTERIOR / EXTERIOR USE: Can be used either inside or outside the home
- STRONG ADHESIVE GRIP: Provides a tough bond on metal to metal connections
- NON FLAMMABLE: Safe to use in enclosed areas. Made in the USA
- DISCOLORATION RESISTANT: Cured sealant will not discolor over time
For many residential systems, field commissioning should include total external static pressure, filter pressure drop, delivered CFM, room balancing, supply and return temperature readings, refrigerant charge verification, and a duct leakage test where required or specified. These measurements tell you whether the installed system performs like the design.
Maintenance Access
Modeling also forces designers to think about access. In homes, that means filters that can be changed without crawling over trusses, air handlers with proper service clearance, accessible balancing dampers, drain pans and float switches for attic equipment, labeled zones, and access panels for concealed components. A duct system that cannot be serviced is not finished well, even if it passes a quick visual inspection.
Quick wins for a faster PC:
Repair Windows errors before they cause bigger problemsFix Now →Scan for outdated or missing drivers - takes under a minuteDriver Scan →2026 Ductwork Cost Ranges Homeowners Should Expect
Ductwork pricing varies because houses vary. A one-story ranch with an open attic is not the same project as a three-story older home with plaster walls, tight chases, asbestos-containing duct wrap, and finished ceilings. Still, 2026 cost ranges are useful for planning.
National ductwork replacement averages commonly cluster around $3,500 for a typical full replacement, with broad ranges from about $1,400 to $7,000+. Complex homes can reach $10,000+, and full installed duct systems can run from roughly $1,500 to well over $20,000 where access, stories, zoning, demolition, and finish repair are significant.
New duct installation is often quoted around $10 to $30 per linear foot for materials and labor. Replacement can cost more because demolition, disposal, tight access, and patching add labor. Some 2026 estimating guides put replacement with removal in the $16 to $55 per linear foot range depending on conditions.
| Scope | Typical 2026 Budget Range | What Drives the Price |
|---|---|---|
| Small duct repair | $10-$20 per linear foot | Access, material type, sealing, insulation, and whether drywall is opened |
| New duct installation | $10-$30 per linear foot | Linear footage, number of runs, sheet metal vs flex, register count |
| Duct replacement with removal | $16-$55 per linear foot | Demolition, disposal, crawlspace or attic work, old insulation, finished surfaces |
| Typical full duct replacement | $1,400-$7,000+ | Home size, layout complexity, return upgrades, leakage testing |
| High-complexity duct project | $10,000-$20,000+ | Multi-story routing, zoning, structural conflicts, finish repair, abatement |
| HVAC replacement without new ducts | $6,000-$12,000 typical in many cases; $8,000-$16,000+ in higher-cost markets | Equipment type, efficiency, electrical, gas, refrigerant, labor market |
| Duct modifications added to HVAC replacement | $500-$2,500+ | Plenum changes, return enlargement, added runs, balancing dampers |
A serious estimate should separate the major cost buckets: design or load calculation, permit fees, duct materials, demolition and disposal, sealing, insulation, registers and grilles, balancing and commissioning, drywall or paint repair, and optional indoor air quality accessories such as media filters, ERV or HRV units, dehumidifiers, UV lights, or zoning dampers.
Permit costs also vary. Some city examples show HVAC replacement permits around $60 to $150, while broader mechanical permit costs can run roughly $100 to $1,500 depending on the jurisdiction and scope. If electrical, gas, structural, or refrigerant work is included, more than one permit or inspection may apply.
Where Ductwork Usually Goes Wrong
Ductwork problems are often hidden behind drywall, insulation, or attic decking, so homeowners may not see them until comfort problems appear. The symptoms are familiar: one bedroom never cools, the system sounds strained, the filter bows inward, doors slam from pressure imbalance, the upstairs runs hot, or dust and odors enter through the return side.
One of the biggest mistakes is installing new equipment on old ducts without checking capacity. A new high-efficiency system cannot overcome undersized returns, crushed flex, leaky plenums, or a filter grille that is too small. In fact, better equipment may reveal old duct problems because modern systems often have tighter airflow requirements and more sensitive controls.
Another mistake is closing supply registers to solve comfort issues. That can increase pressure, reduce total airflow, create noise, and make the system less efficient. Room balancing should be done with proper damper settings, duct adjustments, return air planning, and measured airflow, not by randomly shutting registers.
Leaky ducts are more than an energy problem. ENERGY STAR has reported that leaky ducts can reduce heating and cooling efficiency by as much as 20%. University of Florida IFAS materials report that typical duct systems can lose up to 40% of heating and cooling energy, and that a system leaking 20% of conditioned air can make the system work about 50% harder. Return leaks are especially concerning because they can pull attic, crawlspace, garage, or wall-cavity air into the system.
Flex duct is another common weak point. Flexible duct can work well when properly sized, stretched, supported, and routed. It performs poorly when it is kinked, sagging, pinched by straps, buried under storage, or forced through tight bends. On many projects, we prefer sheet metal for main trunks and high-stress areas, with short, well-supported flex runs where appropriate.
Duct Materials, Sealing, and Insulation Details That Matter
Most residential duct systems use a combination of galvanized sheet metal, duct board, and flexible duct. Each has a place, but each can fail if installed carelessly.
Sheet Metal
Sheet metal is durable, cleanly routed, and easier to seal at joints when installed well. It is commonly used for trunks, plenums, returns, and areas where airflow durability matters. It costs more in labor and fabrication than flex duct, but it holds shape and handles long-term service better.
The Tool Desk
Outbyte Driver Updater FREEScan for outdated or missing drivers - takes under a minuteDriver Scan →Outbyte PC Repair FREEClear out junk files and repair common Windows errorsFree Scan →Rank #3
- SUPERIOR SEALING: Fiber-reinforced formula ensures leak-free HVAC systems, improving energy efficiency and performance
- VERSATILE APPLICATION: UL 181 A-M & B-M certified for use on all types of HVAC ductwork, including metal, fiberglass, and flexible ducts
- INDOOR/OUTDOOR DURABILITY: Weather-resistant sealant withstands various conditions, making it ideal for both interior and exterior use
- FAST-DRYING & LOW VOC: Quick application and reduced drying time, with low volatile organic compounds for safer use in sensitive environments
- EXCEEDS INDUSTRY STANDARDS: Surpasses all SMACNA Pressure and Sealing Classes, ensuring top-quality performance for your HVAC systems
Flexible Duct
Flex duct is useful for branch runs, especially in attics where perfect straight sheet metal routes are difficult. The installer should keep it pulled tight, avoid sharp bends, support it at proper intervals, and avoid compressing the inner liner. A flex duct run that looks convenient may perform badly if it snakes 25 feet through an attic with multiple bends where a shorter hard-pipe route would have worked.
Sealing
Duct sealing should focus on the air handler, plenums, takeoffs, boots, seams, joints, and return side. Mastic and approved tapes should be used according to code and manufacturer requirements. Cloth-backed household duct tape is not a durable duct sealing method.
Insulation and Condensation
Duct insulation should match the location and climate. Ducts in conditioned space have a lower risk profile than ducts in vented attics or crawlspaces. In hot and humid climates, vapor barrier continuity matters. Sweating ducts are often a design and installation issue involving insulation gaps, air leakage, low supply-air temperature, poor airflow, or oversized equipment that does not dehumidify properly.
When ducts must run through hot attics, we look closely at sealing, insulation R-value, vapor barrier condition, support, and access. The best duct location is often inside conditioned space, but that has to be planned early in the framing and design process.
What’s actually slowing this PC down?
Pick the symptom - the matching free tool is one click away.
Permits, Codes, and Inspections
Mechanical work is regulated locally, and requirements vary by city, county, and state. Many jurisdictions require permits for HVAC replacement, duct replacement, new duct systems, equipment relocation, gas furnace work, heat pump installation, and work involving electrical or refrigerant connections. Some places treat minor like-for-like duct repairs differently than full replacement.
Residential duct systems are commonly governed through adopted mechanical and residential codes, including duct construction, materials, flame spread and smoke requirements, supports, insulation, clearances, fireblocking, return air limitations, and protection from damage. The 2024 International Mechanical Code and 2024 International Residential Code both include duct system provisions, but your local adopted version and amendments control the actual job.
A permit is not just paperwork. It creates an inspection point before problems are hidden. In a remodel, timing matters. The inspector may need to see rough ductwork before drywall, insulation, or ceiling finishes are closed. If the project includes attic equipment, the inspection may also cover service platform access, lighting, receptacles, condensate drains, overflow protection, and clear working space.
Ask the contractor whether the permit is included, who schedules inspections, what must remain visible for rough inspection, and whether duct leakage testing is required. If the answer is vague, clarify it before signing.
Do these 3 things before closing this tab:
1Fix the driver behind crashes, sound loss and screen glitches2Clear out junk files and repair common Windows errors3Scan for outdated or missing drivers - takes under a minuteWhen 3D or BIM-Style HVAC Planning Is Worth Paying For
Most homeowners do not need a full industrial 3D model. But some residential projects benefit from 3D coordination or at least detailed duct layout drawings.
Consider upgraded planning when the project includes low ceilings, steel beams, multiple trades in the same ceiling cavity, a finished basement, a second-story addition, concealed linear diffusers, high-end millwork, zoning dampers, multiple air handlers, ERV or HRV ducting, whole-home dehumidification, or a tight mechanical room.
For example, a basement renovation may need supply trunks, return ducts, plumbing drains, recessed lights, sprinkler lines, and structural beams in the same 10-inch joist cavity. Without coordination, somebody makes a field compromise. That compromise may be a dropped soffit through the best part of the room, a crushed duct, an inaccessible damper, or a rerouted pipe that affects another trade.
In these cases, a 3D model does not have to be fancy. The useful deliverable is a coordinated plan that shows duct sizes, elevations, equipment clearances, ceiling impacts, access panels, and conflicts before construction. The cost of planning can be much less than the cost of rebuilding finished ceilings.
When to DIY vs When to Hire a Pro
There are HVAC-related tasks a careful homeowner can handle, and there are tasks that should stay with licensed professionals.
Reasonable DIY Tasks
Homeowners can usually replace standard filters, keep return grilles clear, inspect visible duct damage, look for disconnected attic runs, photograph duct labels and layouts, seal small accessible register boot gaps with appropriate materials, and keep vegetation or storage away from outdoor equipment. Some homeowners can also improve attic access or add labels to dampers after the system has been professionally balanced.
Rank #4
- SUPERIOR SEALING: Fiber-reinforced formula ensures leak-free HVAC systems, improving energy efficiency and performance
- VERSATILE APPLICATION: UL 181 A-M & B-M certified for use on all types of HVAC ductwork, including metal, fiberglass, and flexible ducts
- INDOOR/OUTDOOR DURABILITY: Weather-resistant sealant withstands various conditions, making it ideal for both interior and exterior use
- FAST-DRYING & LOW VOC: Quick application and reduced drying time, with low volatile organic compounds for safer use in sensitive environments
- EXCEEDS INDUSTRY STANDARDS: Surpasses all SMACNA Pressure and Sealing Classes, ensuring top-quality performance for your HVAC systems
Duct cleaning and duct sealing are often confused. Cleaning removes debris from inside ducts. Sealing closes leaks. Cleaning does not fix leakage, poor sizing, bad routing, or missing insulation.
Hire a Professional For
Hire a licensed HVAC contractor for duct sizing, equipment replacement, refrigerant work, gas connections, electrical connections, new trunk lines, major return changes, zoning, combustion safety, attic equipment, crawlspace duct replacement, duct leakage testing, and any work requiring a permit. If asbestos-containing duct wrap or old insulation is suspected, stop and bring in qualified abatement professionals before disturbing it.
For a replacement quote, ask for the Manual J load calculation, Manual D duct design, equipment model numbers, duct material specifications, insulation level, sealing method, permit responsibility, leakage testing, balancing, warranty terms, and who handles drywall or paint repair. A low bid that excludes those items may not be a lower final cost.
Homeowner Checklist for Evaluating HVAC and Ductwork Quotes
Before approving HVAC work, use this checklist to separate a complete proposal from a parts-and-labor guess.
- Load calculation: Room-by-room Manual J, not just square footage.
- Equipment selection: Manual S or equivalent documentation showing why the furnace, AC, or heat pump size was chosen.
- Duct design: Manual D sizing for supply and return ducts, including available static pressure.
- Registers and grilles: Register, grille, and filter grille sizing included, not assumed.
- Materials: Sheet metal, duct board, and flex duct locations identified.
- Sealing: Mastic or approved tape specified at plenums, joints, takeoffs, boots, and returns.
- Insulation: R-value and vapor barrier requirements stated for attics, crawlspaces, garages, and unconditioned areas.
- Permits: Permit scope, fee responsibility, and inspection timing included.
- Commissioning: Static pressure, delivered CFM, balancing, temperature readings, and leakage testing addressed.
- Access: Filters, dampers, drain pans, float switches, service clearances, and access panels planned.
- Finish repair: Drywall, paint, trim, and ceiling repair responsibility stated in writing.
- Warranty: Labor, materials, equipment, and ductwork warranty terms separated clearly.
If a contractor resists basic design questions, that is useful information. The best installers do not treat duct design as an annoyance. They know the duct system is what allows the equipment to do its job.
The Bottom Line
AVEVA E3D HVAC modeling belongs mostly to complex industrial and commercial environments, but the lesson applies directly to houses: ductwork should be designed before it is installed. A residential system does not need a beautiful 3D model to perform well, but it does need accurate loads, right-sized equipment, Manual D duct design, thoughtful routing, proper sealing, insulation, permits, and commissioning.
For a typical 2026 homeowner, budget roughly $1,400 to $7,000+ for many full duct replacements, with complicated homes reaching $10,000 to $20,000+. Expect new duct installation to often fall around $10 to $30 per linear foot, and replacement with demolition to run higher, sometimes $16 to $55 per linear foot. Those numbers only become meaningful when the quote states what is included.
The best HVAC system is not the biggest one, the newest one, or the one with the most polished brochure. It is the system that moves the right amount of air to the right rooms, quietly and efficiently, through ducts that were planned for the house you actually have.
Frequently Asked Questions
Do homeowners need AVEVA E3D or 3D HVAC modeling for residential ductwork?
Usually no. AVEVA E3D is mainly for complex industrial and large multi-discipline design work. Homeowners benefit more from Manual J load calculations, Manual D duct sizing, clear routing plans, permits, sealing, insulation, and commissioning. 3D coordination can be worth it for tight remodels, finished basements, additions, low ceilings, or high-end projects with many trade conflicts.
How much does ductwork replacement cost in 2026?
A typical full duct replacement often lands around $3,500 nationally, with many projects ranging from about $1,400 to $7,000+. Complex homes can exceed $10,000, and difficult multi-story or finished-space projects can reach $20,000 or more. Per-foot pricing commonly ranges from $10-$30 for new duct installation and $16-$55 for replacement with demolition, depending on access and scope.
What is the difference between Manual J and Manual D?
Manual J calculates how much heating and cooling each room needs. Manual D uses those airflow requirements to size and lay out the duct system. Manual J tells the contractor the load; Manual D tells the contractor how to move the air.
Is a permit required to replace HVAC ductwork?
Often, yes, especially for full duct replacement, equipment replacement, equipment relocation, gas work, electrical work, or new duct systems. Permit rules vary by jurisdiction. Some minor repairs may be treated differently, but homeowners should ask who pulls the permit, who schedules inspections, and what work must remain visible before walls or ceilings are closed.
How do I know if my ducts are undersized or leaking?
Common signs include noisy airflow, weak rooms, hot and cold spots, high utility bills, dusty returns, doors moving from pressure imbalance, frequent short cycling, and high static pressure readings. A pro can verify the issue with airflow measurements, total external static pressure, duct leakage testing, and a room-by-room balance report.
Is flexible duct or sheet metal better?
Sheet metal is generally more durable and better for trunks, plenums, returns, and high-airflow runs. Flexible duct can work well for branch runs if it is properly sized, stretched, supported, and kept free of sharp bends or compression. Poorly installed flex duct is one of the most common causes of weak airflow.
