Air conditioner motors are not all the same. In a residential HVAC system, the motor could be moving indoor air through your ducts, spinning the outdoor fan across the condenser coil, or driving the sealed compressor that actually pumps refrigerant. The type of motor matters because it affects comfort, noise, energy use, repair cost, and whether a replacement quote is a simple service call or a larger equipment decision.
For most homeowners, the useful breakdown is this: older and basic systems often use PSC motors, newer and higher-efficiency systems often use ECM motors, outdoor units have condenser fan motors, and compressor motors are sealed inside the compressor. A failed capacitor can look exactly like a failed PSC motor, while a failed ECM may actually be a control module, wiring, board, surge, moisture issue, or airflow problem. That is why our crews do not replace motors on symptoms alone. We test voltage, capacitor strength, amperage, rotation, bearings, blower wheel drag, control signals, and static pressure before condemning the motor.
In 2026, a typical blower motor replacement often lands around $300 to $900 for many standard jobs, with national averages commonly cited near $560. Broader installed ranges can run about $500 to $2,300 depending on the motor and access. A basic PSC blower motor is usually far less painful than an OEM variable-speed ECM motor, which can reach $900 to $2,000 or more installed, and occasionally $2,500 when the part is proprietary or hard to access. That difference is the reason homeowners should understand what type of HVAC motor they have before approving the repair.
Where HVAC Motors Work In A Home AC System
A central air conditioner or heat pump uses several motors, and each one has a different job. When a homeowner says the “AC motor” is bad, the first question is: which motor?
Quick wins for a faster PC:
Scan for outdated or missing drivers - takes under a minuteDriver Scan →Repair Windows errors before they cause bigger problemsFix Now →Fix the driver behind crashes, sound loss and screen glitchesFind Drivers →#1 Best Overall
- 【Product Overview】 5KCP39EGS070S carrier air conditioner condenser fan motor 1/4HP, 1100 RPM(1-Speed), 60 HZ, 208-230 Volt, 1.4A, 48 Frame, 3-leads, Motor case length 4", stud pattern 5-1/4"x5-1/4", Motor Diameter 5 5/8"; Sleeve Bearings, shaft: 1/2" x 1 1/2", Rotation = CCW shaft end, 40°C Ambient, Heat Protection, Includes 1 pcs capacitor 5μF/370V and automatic overload protection, ensuring a perfect fit for your unit
- 【Replaces Part】 5KCP39EGS070S Condenser fan motor replacement Carrier 5KCP39EGY823S, 5KCP39FGS071S, 5KCP39BGS071S, 5KCP39BGZ256S, Genteq GE# 3905, Carrier Bryant Payne HC39GE236, HC39GE237, HC39GE234A, HC39GE237A, Dayton 6DLL0 etc AC/Air Conditioner
- 【Excellent Performance】 Carrier Condenser Motor powers the fan blades that cool the refrigerant in the air conditioning unit from a hot gas to a cold liquid, ensuring optimal temperature control in your setup. Meets original equipment manufacturer (OEM) manufacturing requirements, made of high quality materials and manufacturing processes, can operate stably for a long time, An energy-saving design can reduce energy consumption
- 【Easy to Install】 Our carrier air conditioner condenser fan motor wire lengths and colors were identical to the old motor, easy to Install, Suggest watching a few YouTube video’s on replacing the motor and good tips before you install it
- 【Excellent service】 Here, we provide high-quality products, more importantly, our sincere after-sales service. no matter your problem, we will respond promptly and do our best to solve it. our team consists of professional customer service staff who will patiently listen to your concerns and provide effective solutions. we hope that through our services, you can feel our sincerity and intention so that you can shop with confidence and be satisfied with your consumption

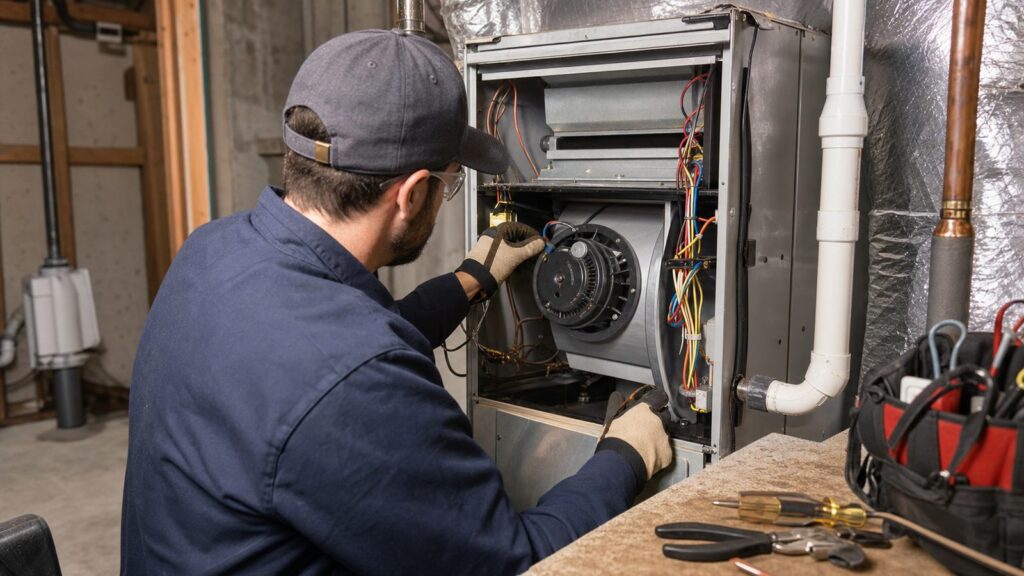

Indoor blower motor
The indoor blower motor sits in the furnace, air handler, or fan coil. It turns the blower wheel that pulls return air through the filter and pushes conditioned air through the supply ducts. This is the motor most connected to comfort complaints such as weak airflow, uneven rooms, poor humidity control, noisy startup, or intermittent air from the registers.
Residential blower motors commonly range from about 1/5 horsepower to 1 horsepower, with many systems using 1/3, 1/2, or 3/4 horsepower motors. Typical nameplate voltages are 115 volts or 208/230 volts depending on the equipment. The correct replacement must match the required horsepower, voltage, RPM, rotation, frame, shaft size, mounting style, speed/control setup, and manufacturer requirements.
Outdoor condenser fan motor
The condenser fan motor is in the outdoor unit. It spins the fan blade that pulls air through the condenser coil and rejects heat outdoors. When this motor fails, the indoor blower may still run, but the AC will not cool properly. The outdoor unit may hum, the fan may sit still, the compressor may overheat, and the breaker may trip.
Condenser fan motors are commonly PSC motors in many standard systems, though ECM and proprietary constant-speed motors are increasingly common in higher-efficiency equipment. Many residential condenser fan motor replacements fall around $300 to $900 installed, with basic single-speed motors on the lower end and OEM ECM-style motors higher.
What’s actually slowing this PC down?
Pick the symptom - the matching free tool is one click away.
Compressor motor
The compressor motor is sealed inside the compressor shell. It is not normally replaced as a separate field part. If the compressor motor winding is shorted, open, grounded, or mechanically locked, the practical repair is usually compressor replacement or outdoor unit/system replacement.
This is a much larger decision than replacing a fan or blower motor. On older equipment, especially an aging low-SEER system or a system with refrigerant, coil, or electrical problems, compressor failure often triggers full replacement math.
Main Air Conditioner Motor Types
HVAC motors can be grouped by function, but the more useful technical split is how the motor is powered and controlled. That control style affects efficiency, replacement cost, comfort, and diagnostics.
PSC motors
PSC stands for permanent split capacitor. These are single-phase AC motors that use a run capacitor to create the phase shift needed for operation. They are common in older indoor blowers and outdoor condenser fans.
A PSC blower motor typically runs at fixed tapped speeds. The installer chooses the correct tap for cooling, heating, or continuous fan operation. That does not mean the motor is truly variable. It usually has several fixed speed leads, and the system energizes one at a time.
PSC motors are simple, familiar, and comparatively affordable. The common weak link is the capacitor. A bad run capacitor can cause a motor to hum but not start, start slowly, overheat, shut off on thermal overload, or draw high amperage. On job sites, we always test the capacitor before quoting a motor because replacing a $20 to $80 part plus labor is very different from replacing the whole motor.
Constant-torque ECM motors
ECM stands for electronically commutated motor. An ECM uses electronic controls and a permanent-magnet motor design to reduce watt draw and improve control compared with a traditional PSC motor.
Constant-torque ECM motors are common in many newer furnaces and air handlers. They are sometimes discussed under well-known platform names such as X13-style motors. They are not the same as full variable-speed motors. A constant-torque ECM usually has programmed taps, and each tap tries to maintain a torque target. It can respond better than a PSC motor under changing load, but it does not precisely maintain a specific airflow across the full operating range.
These motors helped manufacturers meet stricter fan-energy requirements. Since the July 3, 2019 compliance date for federal residential furnace fan standards, ECM-style blower motors have become much more common in new residential equipment.
Rank #2
- 1/3-1/6 HP, 1075 RPM, 208-230 volts, 2 Amps, 48Y Frame with 7.5MFD/370VAC capacitor
- Replaces A.O. Smith ORM5458 1/3-1/6 HP Fan motor
- Reversible Rotation, Shaft Diameter 1/2", Body Diameter 5-5/8"(48Y Frame).
- 2 Years Manufacture Warranty.
- Upgraded OEM Standard Quality.
Variable-speed or constant-airflow ECM motors
Variable-speed ECM blower motors are usually the premium residential blower option. They can ramp up and down, run quietly at low airflow, improve dehumidification, support staged or modulating equipment, and compensate somewhat for duct static pressure.
The key phrase is “somewhat.” A variable-speed motor cannot fix a bad duct system. If the return is undersized, the filter is too restrictive, the evaporator coil is matted with debris, or too many registers are closed, the motor may work harder to hit its airflow target. That can increase watt draw, raise noise, stress the module, and shorten service life.
When these motors fail, the expensive part is often not just copper and bearings. The control module may be programmed for the specific furnace or air handler model. Some replacements must be OEM parts, and the module, motor, harness, and control board may all need to be evaluated together.
Free tools Windows power users keep installed
One-click scans. No signup required.
Shaded-pole motors
Shaded-pole motors are simple, low-torque, low-efficiency motors. In residential HVAC, they are more likely to show up in small accessory applications than as the main blower motor in a central air conditioner. They are inexpensive and simple, but they are not suited for moving the amount of air a central duct system requires.
Split-phase and capacitor-start motors
Split-phase and capacitor-start designs are older or application-specific single-phase motor designs. In residential cooling equipment, homeowners are more likely to hear about PSC and ECM motors, but capacitor-start principles still matter when diagnosing some larger motors and compressor starting circuits.
Three-phase and VFD-driven motors
Three-phase motors and variable frequency drive systems are more common in commercial HVAC than standard single-family residential equipment. In larger buildings, a VFD can vary motor speed by changing frequency, which allows pumps, fans, and air handlers to operate more efficiently at partial load. For a typical home central AC repair, three-phase and VFD equipment is less common unless the property has specialized or commercial-grade systems.
HVAC Motor Comparison Table
The table below gives a practical homeowner-level comparison. Exact costs depend on equipment size, brand, access, local labor rates, warranty status, and whether related parts are damaged.
| Motor type | Common location | How it operates | Typical installed repair cost in 2026 | What homeowners should know |
|---|---|---|---|---|
| PSC blower motor | Indoor furnace or air handler | Single-phase motor with run capacitor and fixed speed taps | About $450 to $900 nationally; some higher-cost metro jobs run $500 to $1,200 | Affordable compared with ECM. Always test the capacitor before replacing the motor. |
| Constant-torque ECM | Indoor blower in newer systems | Electronically controlled motor with programmed torque taps | Often $700 to $1,500 depending on part and labor | More efficient than PSC, but not the same as full variable-speed airflow control. |
| Variable-speed ECM | Premium indoor blower systems | Ramps up and down, often targets airflow and supports comfort features | Commonly $900 to $2,000; proprietary jobs can reach about $2,500 | Excellent comfort when ducts are right. Expensive modules and OEM programming drive cost. |
| Condenser fan motor | Outdoor AC or heat pump unit | Moves outdoor air across the condenser coil | Usually $300 to $900 for many residential systems | Failure can overheat the compressor. Fan blade, capacitor, and coil condition matter. |
| Compressor motor | Sealed inside compressor | Drives refrigerant compression | Not normally replaced separately | A bad compressor motor usually means compressor replacement or system replacement. |
PSC Vs ECM: The Difference Homeowners Actually Feel
The PSC-versus-ECM conversation is often framed only around energy efficiency. That matters, but it is not the whole story. Homeowners feel the difference in airflow behavior, noise, humidity control, repair cost, and how sensitive the system is to duct problems.
Energy use
A PSC motor is mechanically simple but less efficient. It tends to draw more watts, especially during long fan runtimes. An ECM can use substantially less electricity under the right conditions because the motor design and controls are more efficient.
That does not mean swapping a motor automatically makes the whole system compliant with modern efficiency standards. Central AC and heat pump equipment sold and installed in the United States must meet DOE SEER2 and HSPF2 standards that took effect January 1, 2023. Motor efficiency contributes to system performance, but the rated matched system is what determines compliance.
Comfort and airflow
A PSC blower usually delivers less airflow as static pressure rises. If the filter is dirty or the ducts are restrictive, airflow drops and rooms may feel uneven. A constant-torque ECM can hold performance better over some operating conditions. A variable-speed or constant-airflow ECM can do more, adjusting output to maintain target airflow within its design limits.
Recommended Free Tools
On our job sites, this is where homeowners sometimes get misled. A premium ECM blower can make a good duct system quieter and more comfortable. It cannot turn a poorly sized return, crushed flex duct, blocked coil, or undersized supply trunk into a proper air distribution system.
Humidity control
Variable-speed blowers can improve humidity control by ramping airflow and allowing the evaporator coil to remove moisture more effectively during longer, lower-speed cycles. This is most noticeable in humid climates and with matched staged or variable-capacity cooling equipment.
Rank #3
- 1/4HP, 1100 RPM, 1.4A, 208-230V, Include 1 pcs capacitor 5μF/370V, 1-Speed.
- Replacement condenser fan motor compatible with models:Carrier 5KCP39EGS070S, 5KCP39EGY823S, Genteq GE# 3905, Carrier Bryant Payne HC39GE236,237 HC39GE234A Dayton 6DLL0.
- Rotation = CCW Shaft End; Shaft Diameter 1/2", Body Diameter 5-5/8"(48 Frame)
- 2 Years Manufacture Warranty
- Upgraded OEM Standard Quality.
A fixed-speed PSC system can still cool a house well when properly sized and installed, but it has less control finesse. It is more likely to operate in simple on/off cycles with less airflow modulation.
Repair cost
PSC motors are usually less expensive and widely understood. ECM motors cost more because the electronics matter. The module may be programmed to the equipment model, the wiring harness may be specific, and the control board must send the correct signal. A technician may need to determine whether the failure is the module, the motor, the board, the harness, power quality, or airflow stress.
The Tool Desk
Outbyte Driver Updater FREEFix the driver behind crashes, sound loss and screen glitchesFind Drivers →Outbyte PC Repair FREEClear out junk files and repair common Windows errorsFree Scan →That diagnostic time is not waste. It is what keeps a homeowner from paying for a high-dollar motor and then discovering that the real problem was a failed board, water-damaged connector, restricted return, or incorrect control signal.
Symptoms Of A Bad AC Or HVAC Motor
Motor problems show up in several ways, but symptoms overlap. A humming outdoor unit could be a bad capacitor, seized fan motor, failed compressor, contactor issue, or low-voltage control problem. Weak indoor airflow could be a blower motor, dirty filter, frozen coil, duct restriction, bad control board, or blower wheel packed with dust.
Common warning signs include:
- Humming but the fan or blower does not spin
- Burning electrical smell near the furnace, air handler, or condenser
- Weak airflow at the registers
- Outdoor fan stopped while the compressor tries to run
- Breaker trips when cooling starts
- Hot outdoor condenser cabinet
- Ice forming on the indoor coil or refrigerant lines
- Intermittent airflow that starts and stops unpredictably
- High electric bills without a clear weather explanation
- Squealing, scraping, rattling, or bearing noise
If the system is iced up, shut cooling off and run the fan only if it operates normally. If the blower is not running, turn the system off and call for service. Running a frozen system or a condenser with a stopped fan can turn a repairable problem into compressor damage.
What A Professional Should Test Before Replacing The Motor
A motor quote should come after diagnostics, not before. The checklist changes by system type, but a proper service visit usually includes several core checks.
Outdated Drivers Are Slowing You Down
One free scan finds every outdated or missing driver and matches the right update for your exact hardware.Free scan · exact hardware matchPC Slower Than It Used to Be?
A free scan shows the junk files, broken settings and background clutter dragging Windows down - then fixes them in one click.Free scan · Windows 10 & 11Electrical checks
The technician should verify supply voltage, low-voltage calls, contactor operation, capacitor microfarads on PSC motors, motor amperage against the nameplate, resistance where appropriate, and signs of overheated wiring or loose terminals. Many diagnostic fees run about $75 to $150 before repair, depending on the company, market, timing, and whether the fee is credited toward the work.
Mechanical checks
The blower wheel or condenser fan blade should spin freely with power off. Bearings, shaft play, blade condition, wheel cleanliness, housing alignment, and mounting hardware all matter. A motor can fail early if it is fighting a dirty blower wheel, bent fan blade, or misaligned assembly.
Airflow and static pressure checks
This is the part many cheap repair quotes skip. High static pressure can shorten blower motor life. Dirty filters, restrictive high-MERV filters, undersized ducts, closed registers, blocked returns, matted evaporator coils, and dirty blower wheels all increase the workload.
For many residential systems, technicians compare measured static pressure against the equipment’s rated maximum, often around 0.5 inches water column on many standard furnaces and air handlers, though the correct number is always the manufacturer’s rating plate and installation data. If the system is running well above its rated static pressure, simply installing another motor does not solve the root problem.
Do these 3 things before closing this tab:
1Scan for outdated or missing drivers - takes under a minute2Clear out junk files and repair common Windows errors3Fix the driver behind crashes, sound loss and screen glitchesControl checks for ECM motors
For ECM equipment, the technician should confirm control signals, board output, harness condition, module communication where applicable, moisture intrusion, surge damage, and programmed motor compatibility. With proprietary ECMs, an aftermarket motor may not be acceptable if the equipment requires a specific programmed module.
What HVAC Motor Replacement Costs In 2026
Motor pricing has a wide spread because “blower motor” can mean a basic PSC motor in an easy-access closet or a programmed OEM ECM module in a hot attic. Labor access matters too. A basement air handler with room to work is different from a horizontal furnace in a tight crawlspace.
| Repair item | Typical 2026 cost range | Notes |
|---|---|---|
| Diagnostic or service call | $75 to $150 | After-hours and emergency visits can cost more. Some companies credit the fee toward repair. |
| PSC indoor blower motor | $450 to $900 installed | Higher-cost metros may see $500 to $1,200 depending on access and motor specs. |
| ECM or variable-speed blower motor | $900 to $2,000 installed | OEM programmed modules, boards, harnesses, and difficult access can push quotes near $2,500. |
| Outdoor condenser fan motor | $300 to $900 installed | Basic PSC motors are usually lower; proprietary ECM fan motors cost more. |
| Warranty labor-only case | Sometimes around $150 and up | Part warranty may not cover labor, diagnostics, shipping, refrigerant, or trip charges. |
| Broad blower motor replacement range | $500 to $2,300 | Depends on motor type, horsepower, voltage, RPM, location, warranty, and local labor rates. |
The main cost drivers are PSC versus ECM, OEM versus aftermarket, horsepower, voltage, RPM, frame size, programmed module requirements, indoor versus outdoor location, attic or crawlspace access, emergency service, local labor rates, warranty status, and related parts such as capacitors, blower wheels, control boards, fan blades, or wiring harnesses.
Rank #4
- condenser fan motor:SP-B9HS16 115V 60HZ 9W,1550 RPM.
- SP-B9HS16 Condenser fan motor replaced :800402 motor,830037 motor,9 watt 115v fan motor,9 Watt Condenser Fan Motor.
- 9 watt 115v fan motor Package Includes:SP-B9HS16 Condenser fan motor *1
- sp-b9hs16 Motor Fits Model:GEM, GDM,STM,TMC,TSS,GDIM,TBB,DS,TRCB,TS,TSSU,TUC,etc.
- Excellent After-sales Service:Our service team is online 24 hours a day. if you have any question about condenser fan motor, please feel free to tell us. we will be happy to help.
A $500 PSC repair on a solid 8-year-old system is usually an easy decision. A $2,000 ECM repair on a 15-year-old system is different. At that point, the motor quote should lead to a larger conversation about equipment age, refrigerant type, compressor condition, coil condition, warranty, SEER2 efficiency, comfort problems, and how long you plan to stay in the home.
When A Motor Repair Makes Sense
Motor-only replacement is reasonable when the equipment is otherwise in good condition, the heat exchanger or air handler cabinet is sound, the coil is clean and not leaking, the compressor is healthy, the duct system is not abusing the blower, and the system is not near the end of its practical service life.
For many central AC systems, a typical service life is about 12 to 17 years, with maintenance, climate, installation quality, and runtime making a major difference. Heat pumps that run for both heating and cooling may accumulate wear faster. Furnaces can last longer, but the blower motor still depends on airflow and electrical conditions.
Repair is often the right call when the unit is under parts warranty, the motor is a standard PSC or non-proprietary part, the failure is isolated, and the home has been comfortable. It is also reasonable when the homeowner needs a focused repair before a planned future replacement.
When A Motor Quote Should Trigger Replacement Math
A motor failure does not automatically mean the system should be replaced. But some motor quotes are large enough that replacement math is responsible, not sales pressure.
What’s actually slowing this PC down?
Pick the symptom - the matching free tool is one click away.
Consider a broader replacement discussion when:
- The system is 12 to 15 years old or older
- The quoted motor repair is $1,500 to $2,500
- The system uses aging components with limited OEM part availability
- The compressor has high amperage, hard-start symptoms, or overheating history
- The evaporator or condenser coil is corroded, leaking, or heavily deteriorated
- The home has long-standing comfort or airflow problems
- The system has repeated control board, capacitor, or electrical failures
- The equipment is out of warranty
- Utility costs are high and the system is a lower-efficiency older model
For older R-410A systems, the decision is not as simple as “repair or replace because of refrigerant.” R-410A equipment is still common in homes, and repairs may still make sense. The point is that refrigerant availability, equipment age, coil condition, compressor health, warranty, and efficiency should be reviewed together before spending several thousand dollars on a proprietary motor assembly.
Airflow Problems That Kill Blower Motors
Blower motors fail from age, heat, electrical issues, bearing wear, moisture, and manufacturing defects. But one of the most preventable causes is bad airflow. A blower is designed to move a certain amount of air against a certain amount of resistance. When resistance gets too high, the motor works outside its comfort zone.
Common causes include dirty filters, filters with too much pressure drop for the system, undersized return ducts, blocked return grilles, closed supply registers, crushed flex duct, dirty evaporator coils, dirty blower wheels, restrictive zoning setups, and poorly designed duct transitions.
A clean 1-inch filter may need replacement every 30 to 90 days in many homes, depending on dust, pets, runtime, and filter type. A 4-inch or 5-inch media filter may last 6 to 12 months in some systems, but only if the cabinet is sized correctly and static pressure stays within the equipment’s rating. The calendar is a starting point; pressure drop and actual condition are better guides.
Free tools Windows power users keep installed
One-click scans. No signup required.
On our projects, we pay close attention to return sizing and filter area. A premium variable-speed blower on an undersized return can become noisy, expensive, and short-lived. Better motors help most when the duct system gives them a fair job to do.
Independent reader supportYour contribution helps us test, update, and keep practical guides available for everyone.When To DIY Vs When To Hire A Pro
There are a few homeowner checks that are reasonable. Replacing or inspecting an air filter, confirming that registers are open, checking that the outdoor disconnect is not visibly off, clearing leaves and debris from around the condenser, and making sure the thermostat is set correctly are normal homeowner tasks.
Keep at least 2 feet of clear space around the outdoor condenser where practical, and avoid packing mulch, shrubs, fencing, or storage against the coil. If the outdoor fan is not running, do not stick tools through the grille. A fan can start unexpectedly if the system calls for cooling.
Motor replacement is usually professional work. PSC motors involve capacitors that can hold a charge. ECM systems involve sensitive electronics, programmed modules, and control diagnostics. Outdoor units involve high voltage, sharp sheet metal, rotating fan blades, and compressor-protection concerns. A wrong motor rotation, wrong capacitor rating, wrong horsepower, incorrect speed tap, or mismatched ECM module can damage equipment or create unsafe operation.
Best Value
- OEM Standard Quality: 1/4HP 60HZ, AC208-230V, 825RPM, 1.4A Rated Current, Single Phase
- Replacement & Compatibility: Replacement for Goodman Amana Janitrol 0131M00014PS, Lennox 92W75, 100483-43, YSL YSLB-220-8-B002. Compatible with A.O. Smith F48AA68A50, Carrier HC39GE242, HC39GE242A, HB39GQ232, GE Genteq 5KCP39LFBE31S, 5KCP39LFY534AS, and Lennox 12Y65 models
- Easy Installation: 48Y Frame, Shaft Length: 3.42 inch, Shaft Diameter: 0.5 inch. This condenser fan motor supports reversible rotation (CCW / CW), and includes a 47" cut-to-length wire for easier wiring and quick installation
- Includes Capacitor: Replacing the motor also requires replacing the capacitor. Includes 1 explosion-proof capacitor for fast starts—no extra purchase needed, install and use right away
- Secure and Durable: Built with a pure copper coil and stainless steel bearings for reliable performance. Features overload protection with automatic reset and is designed for all-weather durability in ambient temperatures up to 40°C
Hire a licensed HVAC professional when there is a burning smell, breaker trip, no outdoor fan operation, ice on the coil, repeated capacitor failure, ECM fault, water-damaged wiring, suspected compressor issue, or any repair requiring electrical testing inside the cabinet.
Safety And Permit Notes
Motor-only repair is often treated differently from full HVAC equipment replacement, but permit rules are local. Some jurisdictions require mechanical permits for equipment replacement, furnace or air conditioner installation, duct alterations, gas piping, venting changes, or certain electrical work. A like-for-like motor repair may not trigger the same requirement, but homeowners should not rely on a blanket “no permit needed” answer without checking local rules.
The practical distinction is scope. Replacing a failed blower motor in an existing listed appliance is a service repair. Replacing a furnace, air handler, heat pump, condenser, evaporator coil, or major duct system is more likely to involve mechanical permits, inspections, code clearances, electrical requirements, condensate rules, and manufacturer installation specifications.
Safety matters even for small repairs. Before any panel is opened, power must be shut off at the correct disconnect or breaker and verified. Capacitors should be handled properly. Fan blades and blower wheels should be secured before removal. Wiring should be returned to the manufacturer’s diagram, not guessed from memory.
Do these 3 things before closing this tab:
1Fix the driver behind crashes, sound loss and screen glitches2Repair Windows errors before they cause bigger problems3Scan for outdated or missing drivers - takes under a minuteHow To Read A Motor Replacement Quote
A good quote should identify the failed motor location, motor type, part source, labor, warranty, and any related corrections. “Replace fan motor” is not enough detail when prices can range from a few hundred dollars to more than $2,000.
Ask these questions before approving the work:
- Is this the indoor blower motor, outdoor condenser fan motor, or compressor?
- Is it PSC, constant-torque ECM, or variable-speed ECM?
- Was the capacitor tested, and what was the reading compared with its rating?
- Was motor amperage checked against the nameplate?
- Does the blower wheel or fan blade spin freely?
- Was static pressure measured?
- Is the part OEM, aftermarket, or remanufactured?
- Does the ECM module require programming for this equipment model?
- Is the part under manufacturer warranty?
- What labor warranty applies?
- Are any control boards, harnesses, capacitors, fan blades, or blower wheels included?
The cheapest quote is not always the best quote if it skips the cause. The most expensive quote is not automatically wrong either, especially on proprietary variable-speed equipment. What matters is whether the diagnosis explains why the motor failed and whether the repair matches the equipment.
Bottom Line For Homeowners
The main air conditioner motor types homeowners should know are PSC motors, constant-torque ECM motors, variable-speed ECM motors, condenser fan motors, and sealed compressor motors. PSC motors are common, simpler, and usually less expensive to repair. ECM motors are more efficient and can improve comfort, but they cost more because electronics, programming, and OEM compatibility matter. Condenser fan motors protect the outdoor unit’s heat rejection. Compressor motors are sealed, and failure usually means a major repair or replacement decision.
Before approving an HVAC motor replacement, make sure the diagnosis separates the motor from the capacitor, control board, wiring, fan blade, blower wheel, compressor, and duct airflow. A correct motor repair should restore reliable operation. A rushed motor swap on a system with high static pressure or failing controls can leave the real problem in place.
Frequently Asked Questions
What are the main types of motors used in an air conditioner?
The main residential AC motor categories are indoor blower motors, outdoor condenser fan motors, and compressor motors. By control type, common motors include PSC motors, constant-torque ECM motors, variable-speed ECM motors, shaded-pole accessory motors, and some split-phase or capacitor-start designs.
What is the difference between a PSC motor and an ECM motor?
A PSC motor is a permanent split capacitor motor that usually runs at fixed tapped speeds and uses a run capacitor. An ECM is an electronically commutated motor with electronic controls and a permanent-magnet design. ECM motors are usually more efficient and can offer better comfort control, but they cost more to replace.
How much does an HVAC blower motor replacement cost in 2026?
Many blower motor replacements fall around $300 to $900, with common national averages near $560. A broader installed range is about $500 to $2,300. PSC blower motors commonly run about $450 to $900 installed, while ECM or variable-speed motors often cost $900 to $2,000 or more.
Can a bad capacitor look like a bad AC motor?
Yes. A failed capacitor can cause a PSC motor to hum, start slowly, overheat, or fail to spin. A technician should test the capacitor, voltage, amperage, bearings, wiring, and fan or blower movement before condemning the motor.
Windows Errors? Fix Them Before They Spread
Repair common Windows errors and clear accumulated junk for a smoother, more stable PC - no reinstall needed.Free scan · no reinstallCrashes, No Sound, or Screen Glitches?
Random freezes, missing sound and display glitches usually trace back to one bad driver. Find and replace yours safely.Free scan · under a minuteIs a variable-speed blower motor worth repairing?
Often, yes, if the system is newer, under warranty, comfortable, and otherwise healthy. But a $1,500 to $2,500 ECM motor quote on an older system should trigger replacement math that includes system age, warranty, compressor condition, coil condition, refrigerant, efficiency, and duct performance.
Can bad ducts damage an ECM blower motor?
Bad ducts can shorten blower motor life. High static pressure from dirty filters, undersized returns, closed registers, dirty coils, or crushed ductwork can make the motor work harder, increase noise, raise watt draw, and contribute to premature failure.
Quick Recap
Product prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on Amazon at the time of purchase will apply.
